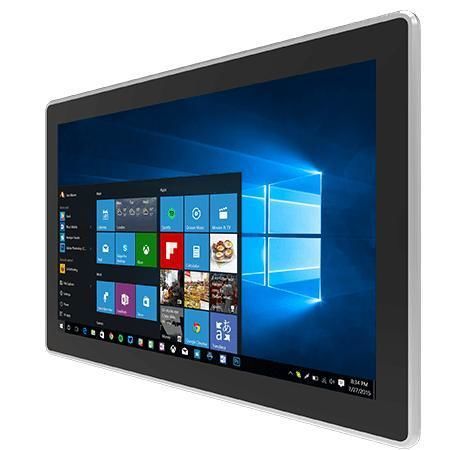

Multitouch screen panel PC W24IP7T-PPA2

PCAP capacitive touch screen24"1920 x 1080

Overview
The Winmate W24IP7T-PPA2 is a 24-inch PP Series industrial Panel PC (HMI) designed for machine control, factory automation and operator interfaces. It combines an Intel® Pentium® N4200 processor in a fanless aluminum housing with a projected capacitive (PCAP) multi-touch Full HD display and front IP65 protection to meet harsh industrial environments and hygienic installation requirements.

Key features

• 24-inch 1920 x 1080 PCAP multi-touch display
• Intel® Pentium® Apollo Lake N4200 (1.1 GHz base, up to 2.5 GHz burst)
• Fanless design, low power consumption
• Front panel protection IP65 (water & dust resistant)
• Aluminum die-cast housing with true-flat slim front for easy cleaning
• Rich I/O: multiple USB, serial (RS232/422/485), dual Intel Gigabit LAN, DP video, audio
• Security: TPM 2.0
• Storage & expansion: M.2 slots, optional 2.5" SATA, PCIe x1

Certifications

• CE
• FCC

Mechanical & Environmental highlights

• True-flat front surface and slim bezel for hygienic or industrial settings
• Panel-mount default; VESA mount optional
• Fanless cooling reduces maintenance
• Operating range suitable for factory floors (0°C to 50°C; humidity 10%–90% RH non‑condensing)

I/O & Expansion highlights

• 4 x USB 3.2 Gen1 Type‑A
• Serial ports supporting RS232/RS422/RS485 (configurable)
• 2 x Intel® Gigabit Ethernet controllers
• Display output via DisplayPort (default); optional HDMI/VGA
• M.2 2242 B‑key (SATA), M.2 2230 E‑key (Wi‑Fi), PCIe 2.0 x1 for expansion

Applications

• Machine control and industrial automation HMI
• Operator control and monitoring panels
• Room information/booking displays, access control terminals
• Embedded industrial computing and IIoT gateways requiring robust front IP protection

Technical specifications

• Model: W24IP7T-PPA2 (Winmate)
• Display: 24.0 inches, PCAP multi-touch, 1920 x 1080, 250 nits, 3000:1 contrast
• Processor: Intel® Pentium® N4200 (1.1 GHz base, up to 2.5 GHz)
• Memory: Dual-channel SO‑DIMM (non‑ECC), up to 16 GB
• Storage: 128 GB SSD default; options 256/512 GB/1 TB; optional 2 x SATA III for 2.5" drives (RAID optional)
• Ethernet: 2 x Intel® Gigabit LAN
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux (Ubuntu) options
• Dimensions: 604 x 373 x 75 mm; Cut out: 583 x 353 mm
• Weight: ~8.7 kg; Mounting: Panel mount (default) / VESA optional
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Front IP65
• Power: 1 x 12V DC (Din4); adapter 12V 50W
• I/O summary: 4 x USB3.2 Gen1, serial ports, 2 x RJ45 Gigabit, 1 x DP1.2 (HDMI/VGA opt.), Mic in / Line out / 2 x speaker
