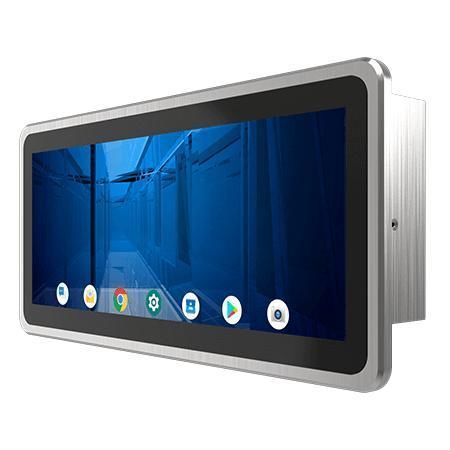

Multitouch screen panel PC W12IM3S-PPB1

PCAP capacitive touch screen1000 nits12.3"

Overview
Winmate W12IM3S-PPB1 is a 12.3-inch ARM A53 PP Series HMI Panel PC engineered for machine control, factory automation and operator HMI. It features a 12.3" 1920 × 720 projected capacitive multi-touch display, ARM A53 Quad Core 2.0 GHz CPU, front IP65 protection, aluminum/metal enclosure and a fanless thermal design for deployment in industrial and semi-public environments.

Key Features

• 12.3" 1920 × 720 projected capacitive multi-touch screen (1000 nits)
• ARM A53 Quad Core 2.0 GHz processor
• Front panel protection: IP65 (water and dust resistant)
• Aluminum / metal housing with fanless design
• Interfaces and options for room booking, access control and information display

Product Highlights & Design
The unit combines an industrial-grade metal housing and fanless cooling to minimize maintenance and reduce ingress of dust. The IP65-rated front protects against water splashes and particulates. The high-brightness 12.3" panel supports accurate touch interaction and legible public-facing displays. Multiple OS and connectivity options allow integration into embedded control systems and building management applications.

Suggested Applications

• Machine control and factory automation operator interfaces
• Room booking, meeting-room panels and room information displays for offices, hotels and conference centers
• Access control terminals and industrial/commercial information kiosks

Certifications

• Front IP65
• CE
• FCC

Additional Notes
Available with optional WLAN/Bluetooth modules, optional Micro HDMI output, optional speakers and multiple OS choices (Android default, Linux Yocto, Linux Ubuntu Server). Accessories include AC-DC adapter, power cord, VESA screws and mounting clips.

Technical Specifications

• Model: W12IM3S-PPB1
• Brand: Winmate
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Size: 12.3 inches
• Display — Resolution: 1920 × 720
• Display — Panel Brightness: 1000 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 88/88/88/88
• Display — Active Area: 292.92 × 110.22 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Linux Ubuntu Server 22.04
• WLAN / BT: Support (optional)
• USB: 2 × USB 2.0 Type A; 1 × Micro USB 2.0 OTG
• Serial: 1 × RS232/422/485 (default RS232)
• LAN: 1 × LAN 10/100/1000 Mbps
• Video: 1 × Micro HDMI output (optional)
• Audio: 2 × Speaker (optional)
• SD Card Slot: 1 × Micro SD (max 32 GB)
• Dimensions (WxHxD): 334.3 × 155.8 × 57 mm
• Cut out: 312 × 140 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Metal / Aluminum housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP Rating: Front IP65
• Power: 12V DC with Terminal Block; Adapter: 12V 50W
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
