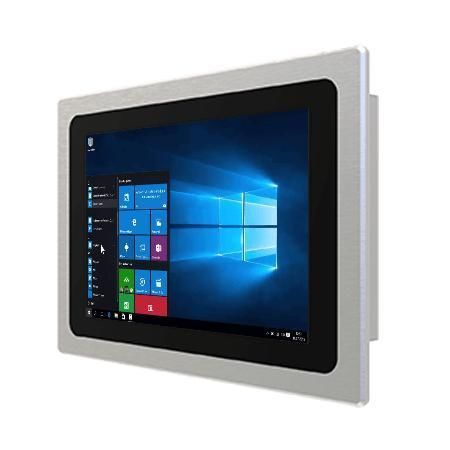

Multitouch screen panel PC W10IE3S-PPH2

PCAP capacitive touch screen10.1"1280 x 800

Product overview
Winmate W10IE3S-PPH2 is a 10.1-inch PP Series HMI Panel PC powered by Intel® Celeron® Elkhart Lake N6211. Built for machine control, factory automation and operator interfaces, it combines a true-flat slim front, PCAP multi-touch, fanless cooling and industrial I/O for reliable on-site operation and long lifecycle availability.

Key features

• 10.1" 1280 x 800 display with PCAP multi-touch
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• Front panel protection IP65
• Dual 2.5 Giga LAN (2 x Intel® Ethernet Controller)
• Fanless design and low power consumption
• Optional WLAN/BT via M.2 slot and flexible storage options

Design and use
The PP Series offers a true-flat, slim bezel ideal for panel mounting in control cabinets and operator stations. The flat front simplifies cleaning and reduces dust traps on edges. Metal die-cast housing improves corrosion resistance for industrial environments.

Touch and display
Projected capacitive multi-touch (PCAP) delivers accurate, multi-finger responsiveness for operator workflows and HMIs. 350 nits brightness and 1280 x 800 resolution provide clear visualization for industrial screens.

Connectivity and I/O
The system provides extensive I/O for industrial IoT and integration: multiple USB 3.2 ports, serial ports (RS232/422/485), 2 x 2.5 Giga LAN, HDMI (optional), audio, and M.2 slots for SSD and Wi‑Fi modules to support vertical integrations.

Environmental protection & reliability
Front IP65 rating shields against dust and splashes. Fanless thermal design reduces moving parts and maintenance; TPM 2.0 support increases platform security for industrial deployments.

Certifications
CE, FCC

Technical specifications

• Display: 10.1"; 1280 x 800; PCAP multi-touch; Brightness: 350 nits; Contrast: 800:1; Active area: 216.96 x 135.6 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); 8 GB / 16 GB (optional)
• Storage: 128 GB SSD (default); up to 2 TB optional; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT / Linux Ubuntu 22.04
• WLAN/BT: optional via M.2 2230 E-Key
• I/O ports: 2 x USB3.2 Gen2x1 (Type-A); Serial: 1 x RS232/422/485 + 1 x RS232; 1 x HDMI 2.0 (optional); 2 x Speaker
• Expansion: 1 x M.2 2242 B-Key (SATA SSD)
• Mechanical: 295 x 200 x 53 mm; Cut-out: 240 x 165 mm; Weight: 1.9 kg; Panel mount (default), VESA optional; Metal housing; Fanless
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing; Front IP65
• Power: 12V DC input (2.5φ DC jack); Adapter 12V 50W
• Accessories: AC/DC adapter 100~240V, power cord, mounting clips, VESA screws
