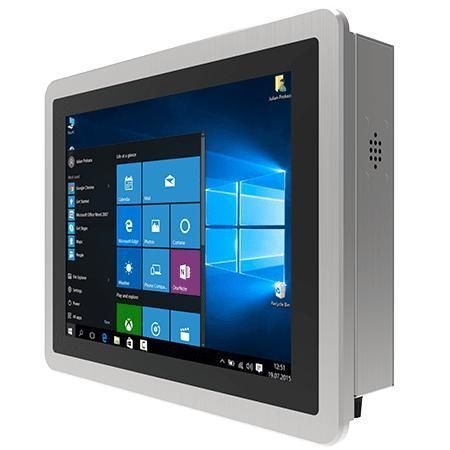

Multitouch screen panel PC R12IAD3S-PPM2

PCAP capacitive touch screen12.1"1024 x 768

Overview
The R12IAD3S-PPM2 is a 12.1-inch PP Series HMI Panel PC powered by a 12th Gen Intel® Core™ i5-1235U processor. It is built for machine control, factory automation and operator HMI tasks where front IP65 protection, fanless operation and a compact panel footprint are required.

Key Features

• 12.1-inch 1024 x 768 display with projected capacitive (PCAP) multi-touch
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM DDR5 4800MHz, supports up to 32GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/O: 2 x USB 3.2 Gen2x1, serial ports, LAN, optional HDMI and audio
• Front panel IP65 protection
• Aluminum die-cast housing and fanless design
• 12 V DC power input

Product Highlights

• True-flat surface and slim panel format for easy integration and cleaning in industrial environments
• PCAP multi-touch for accurate, multi-finger operator input
• Front-side IP65 sealing to protect against dust and water splashes
• Rich I/O including serial ports, USB, dual 2.5 G LAN and expansion slots (M.2) for NVMe storage and Wi‑Fi
• Durable aluminum die-cast enclosure suitable for long-life industrial deployments

Recommended applications

• Machine control and operator HMIs
• Factory automation and production lines
• Embedded systems and IIoT gateway panels

Technical specifications

• Display Size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Active Area: 245.76 x 184.32 mm
• Processor: Intel® Core™ i5-1235U (3.3 GHz up to 4.40 GHz)
• Memory: 8GB (default); options 16GB / 32GB — 1 x SODIMM, DDR5 4800MHz
• Storage: 128GB SSD (default); options 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet Controller: 2 x Intel® Ethernet Controller (2.5 Gbps RJ45)
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit) or Linux Ubuntu 22.04 (optional; Linux does not support Wake on Touch)
• WLAN / Bluetooth: optional via M.2 2230 E-Key
• Dimensions: 322 x 256 x 74 mm
• Cut out: 302 x 237 mm
• Weight: 2.6 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Aluminum die-cast
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• USB Ports: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial Ports: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: 1 x LED power, 1 x LED storage
• Brightness Control: 1 x brightness adjustment knob
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Power Adapter: 12V 120W (accessory); included accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
