Multitouch screen panel PC R10IAN3S-PPT2
PCAP capacitive touch screen10.4"1024 x 768

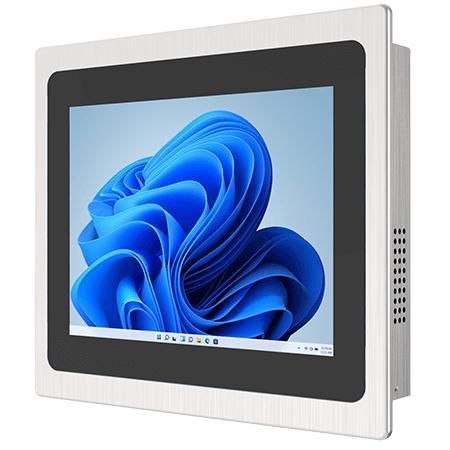

Multitouch screen panel PC - R10IAN3S-PPT2 - Winmate, Inc. - PCAP capacitive touch screen / 10.4" / 1024 x 768
Multitouch screen panel PC - R10IAN3S-PPT2 - Winmate, Inc. - PCAP capacitive touch screen / 10.4" / 1024 x 768
Multitouch screen panel PC - R10IAN3S-PPT2 - Winmate, Inc. - PCAP capacitive touch screen / 10.4" / 1024 x 768 - image - 2
Multitouch screen panel PC - R10IAN3S-PPT2 - Winmate, Inc. - PCAP capacitive touch screen / 10.4" / 1024 x 768 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
10.4"
Resolution
1024 x 768, XGA
Processor
Intel® Processor N150, Intel® Processor N100
Construction
fanless, in metal housing
Mounting
VESA mounting
Applications
industrial
Protection level
IP65, waterproof front panel
Other characteristics
HMI, Ethernet, WiFi, RJ45, USB 2.0, USB Type-C
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Overview
The Winmate R10IAN3S-PPT2 is a 10.4-inch PP Series HMI Panel PC for machine control, factory automation and operator interfaces. It is based on the Intel® Alder Lake‑N platform (Intel® Processor N100 default; N150 optional) with integrated UHD graphics, fanless metal enclosure and front panel IP65 protection. Panel mount is standard; VESA mounting is available as an option.

Key features
  • 10.4” XGA (1024 x 768) TFT LCD, 500 nits, PCAP multi-touch
  • Intel® Alder Lake‑N (N100 default, N150 optional)
  • 1 x SO‑DIMM DDR5‑4800 (up to 16 GB)
  • Dual Intel® 2.5 Gigabit Ethernet ports
  • Extensive I/O: HDMI, USB 3.2 Gen2 Type‑C (DP‑Alt), USB 3.2 Gen1/2 Type‑A, USB 2.0, multiple COM ports
  • Front IP65, fanless metal housing, panel mount (default) / VESA (optional)


Certifications
  • CE
  • FCC


Technical specifications
  • Display: 10.4 inches; Resolution 1024 x 768 (XGA); Brightness 500 nits; Contrast 1000:1; View angles 88/88/88/88; Active area 210.4 x 157.8 mm; Projected capacitive multi‑touch
  • System: Processor Intel® N100 (6M Cache, up to 3.40 GHz) default; Intel® N150 (6M Cache, up to 3.60 GHz) optional; Memory 4 GB default, optional 8 GB / 16 GB (1 x SO‑DIMM DDR5‑4800); Storage 128 GB SSD default; optional 256 GB/512 GB/1 TB/2 TB/4 TB; 1 x SATA III for 2.5" SSD/HDD (up to 2 TB when NVMe not present)
  • Connectivity & Security: 2 x Intel® 2.5 GbE; 1 x M.2 2230 E‑Key slot for Wi‑Fi module (optional); TPM 2.0; WLAN/BT optional
  • Mechanical: Dimensions 284 x 252 x 55 mm; Cut out 262 x 220 mm; Weight 2.3 kg; Metal housing; Fanless design; Panel mount standard, VESA optional
  • Environment: Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C; Front IP65
  • I/O ports: 1 x HDMI 2.0b (optional); 1 x USB 3.2 Gen2 Type‑C (DP Alt.); 2 x USB 3.2 Gen1 Type‑A; 4 x USB 2.0; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5 GbE RJ45; Audio: 2 x speakers; LED indicators for power and storage; Brightness adjustment knob
  • Control & Power: 1 x Power button; 1 x Reset button; Power input 12V DC (2.5φ jack); Adapter 12V 50W included; Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
