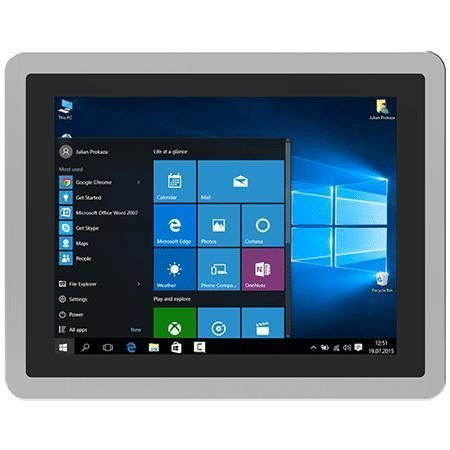

Multi-touch screen panel PC R12IP7T-PPM2

PCAP capacitive touch screen12.1"1024 x 768

Overview
The R12IP7T-PPM2 is a 12.1" PP Series HMI Panel PC powered by Intel® Pentium® N4200 (Apollo Lake). It is designed for machine control, factory automation and operator HMI applications where stable hardware integration, fanless operation and long lifecycle availability are required. The product features a real-flat slim design, aluminum housing, front IP65 protection, projected capacitive multi-touch and a fanless cooling system for ultra-low power consumption.

Key features

• 12.1" display, 1024 x 768, 500 nits
• Projected capacitive multi-touch screen
• Intel® Pentium® Apollo Lake N4200 (1.10 GHz, up to 2.5 GHz)
• Fanless cooling system and ultra-low power consumption
• Front IP65 water and dust proof
• Aluminum housing and fanless design
• Suitable for room booking schedule, access control and room information display

Product highlights

• Real flat surface and slim industrial design for easy maintenance and cleaning
• Convenient onscreen operations with PCAP multi-touch
• Front IP65 rating for dust and splash protection
• Rich I/O interface for IoT connectivity (serial, USB, LAN, video, audio)
• Robust aluminum die-cast housing for corrosion resistance and durability

Certifications

• CE
• FCC

Caractéristiques / spécifications techniques

• Display Size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Active Area: 245.76 x 184.32 mm
• Processor: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
• Memory: Dual-channel (non-ECC) SO-DIMM RAM, up to 16 GB
• Storage: 128 GB SSD (Default); 256 GB SSD (Optional); 512 GB SSD (Optional); 1 TB (option listed); 2 x SATA III for 2.5" SSD/HDD (optional, support RAID)
• Ethernet controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating System (optional): Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 20.04
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• Dimension: 322 x 256 x 79 mm
• Cut out: 302 x 237 mm
• Weight: 2.7 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal housing (aluminum die-cast)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• USB Port: 4 x USB 3.2 Gen1 x1 (Type-A)
• Serial Port: 1 x RS232/422/485 (Default RS232); 1 x RS232
• LAN: 2 x Giga LAN RJ45 connector
• Video: 1 x DP 1.2 (Default); 1 x HDMI 1.4 (Optional); 1 x VGA (Optional)
• Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion Port: 1 x M.2 2242 B-key slot (for SATA III SSD); 1 x M.2 2230 E-key slot (for Wi‑Fi module); 1 x PCIe 2.0 (x1) slot
• Indicator: 1 x LED indicator for power; 1 x LED indicator for storage
• Brightness Knob: 1 x Brightness adjustment knob
• Power Input: 1 x 12 V DC, Din4 pin connector
• Power Rating: 12 V DC
• Adapter: 12 V 84 W
• Accessories (included / listed): 100~240 V AC to DC Adapter; Power cord; VESA screws; Mounting clips
