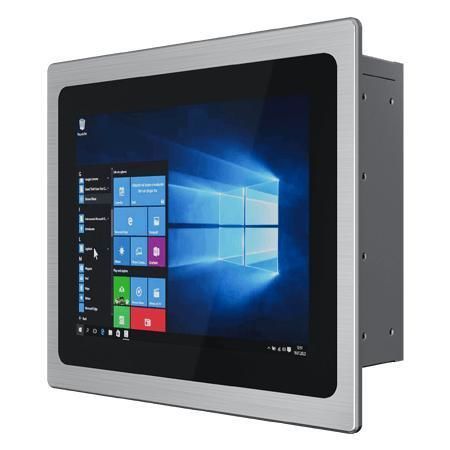

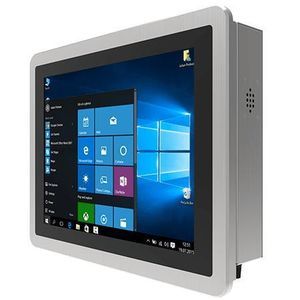

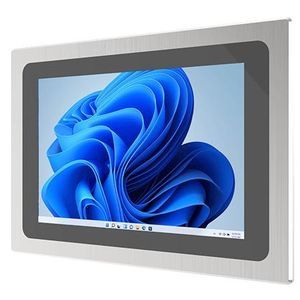

Multitouch screen panel PC R10IAD3S-PPT2

PCAP capacitive touch screen10.4"1024 x 768

Overview
Winmate R10IAD3S-PPT2 is a 10.4-inch PP Series HMI Panel PC powered by 12th Gen Intel® Core™ i5-1235U. Designed for machine control, factory automation and operator HMI, it targets industrial buyers, OEMs and system integrators requiring long lifecycle availability, front IP65 protection and wide I/O for IIoT connectivity.

Key Features

• 10.4” 1024 x 768 with Projected Capacitive (PCAP) multi-touch
• Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/O: 2 x USB 3.2 Gen2x1, serial ports, LAN, audio, expansion slots
• Front IP65 protection; aluminum die-cast housing; fanless design
• 12 V DC power input, optional 12V 120W adapter

Product Highlights

• True-flat front and slim bezel for easy cleaning and reduced dust accumulation
• PCAP multi-touch for precise on-screen control in operator panels
• Front IP65 sealing protects against dust and water splashes in industrial environments
• Wide I/O and M.2 expansion enable flexible IIoT and OEM integrations
• Aluminum die-cast enclosure and fanless thermal design for corrosion resistance and reliable operation

Certifications

• CE
• FCC

Technical specifications

• Display: 10.4 inches, 1024 x 768, 500 nits, 1000:1 contrast
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; optional 16GB/32GB; 1 x SODIMM DDR5 4800MHz, up to 32GB
• Storage: 128GB SSD default; optional 256GB–4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB; M.2 2280 M-Key for NVMe
• Ethernet: 2 x Intel® 2.5 Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Ubuntu: Wake on Touch not supported)
• Wireless: WLAN/Bluetooth optional via M.2 2230 E-Key
• Dimensions: 284 x 255 x 67 mm; Cut-out: 262 x 218 mm; Weight: 2.6 kg
• Mounting: Panel mount default; VESA optional
• Environment: Operating 0°C to 50°C, 10%–90% RH non-condensing; Storage -10°C to 60°C
• IP rating: Front IP65
• I/O: 2 x USB 3.2 Gen2x1 (Type-A); 1 x RS232/422/485 + 1 x RS232; HDMI 2.0 optional; 2 x Speaker; Brightness knob; LED indicators
• Power: 1 x 12V DC jack; Adapter 12V 120W (optional)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
