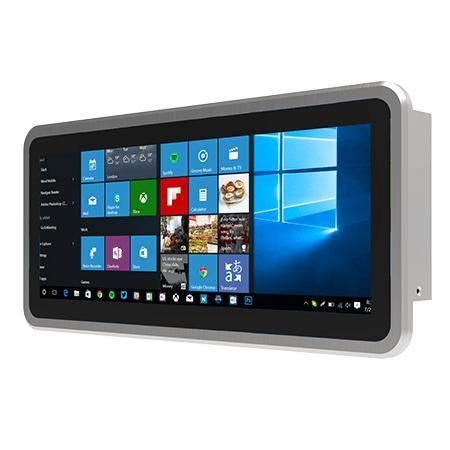

Multi-touch screen panel PC W12IE3S-PPB1

PCAP capacitive touch screen1000 nits12.3"

Overview
Winmate W12IE3S-PPB1 is a 12.3-inch PP Series HMI Panel PC powered by Intel® Celeron® N6211 (default). It is designed for machine control, factory automation and operator HMI applications where reliable field operation, rugged design and long lifecycle availability are required. Key hardware includes a 12.3" 1920 x 720 PCAP multi-touch display, front IP65 protection, dual Gigabit Ethernet, fanless cooling and ultra-low power consumption.

Key Features

• 12.3" 1920 x 720 panel
• PCAP projected capacitive multi-touch screen
• Front IP65 water and dust protection
• Dual Intel® Gigabit Ethernet
• Fanless cooling and ultra-low power consumption

Product Highlights

• Responsive PCAP multi-touch supporting gestures for zoom, pan and gesture-based controls suitable for operator HMI tasks.
• Front IP65-rated protection against water splashes and dust for harsh industrial environments.
• Aluminum metal housing with fanless design for quiet operation and reduced dust ingress.
• Dual Intel® Gigabit Ethernet controllers for redundancy and high-speed industrial network connectivity.
• Compact dimensions and panel/VESA mounting for space-constrained control panels and machine interfaces.
• Certifications: CE, FCC; front IP65 ingress protection.

Applications

• Machine control and factory automation
• Operator HMI and control panels
• SCADA and supervisory systems
• Edge HMI in harsh or space-constrained industrial environments

Technical specifications

• Model: W12IE3S-PPB1
• Brand: Winmate
• Display - Size: 12.3 inches
• Display - Resolution: 1920 x 720
• Display - Type: Projected Capacitive Multi Touch (PCAP)
• Display - Panel Brightness: 1000 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 88, 88, 88, 88
• System - Processor: Intel® Celeron® N6211 (up to 3.0 GHz) default; Intel® Celeron® N6210 (up to 2.6 GHz) optional
• System - Memory: 1 x SO-DIMM DDR4 3200 MHz, 4GB default; options: 8GB, 16GB
• System - Storage: 1 x M.2 2242 B-key SSD 128GB default; optional M.2 up to 512GB; 1 x SATA III for 2.5" SSD/HDD up to 1TB optional
• System - Ethernet controller: 2 x Intel® Ethernet Controller (2 x Gigabit LAN RJ45)
• System - Security: TPM 2.0
• System - Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• System - WLAN / BT: optional support via mPCIe / mini PCIe
• Mechanical - Dimension: 338.3 x 159.8 x 56.5 mm
• Mechanical - Cut out: 240 x 165 mm
• Mechanical - Mounting: Panel mount; VESA mount
• Mechanical - Enclosure: Metal housing (aluminum)
• Mechanical - Cooling System: Fanless design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• Certification: CE, FCC
• IO Ports - USB: 1 x USB3.2 Gen1x1 (Type-A); 1 x USB2.0 (Type-A)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232); plus 1 x RS232
• IO Ports - LAN: 2 x Giga LAN RJ45 connectors
• IO Ports - Video: 1 x HDMI 1.4 optional
• IO Ports - Audio: 2 x Speaker
• IO Ports - Expansion: 1 x mPCIe slot (for half-size WiFi module) optional; 1 x Mini PCIe optional
• IO Ports - Indicator: 1 x LED indicator for power; 1 x LED indicator for storage
• IO Ports - Brightness Control: 1 x Brightness Adjustment Knob
• Control - Buttons: 1 x Power Button; 1 x Reset Button
• Power - Power Input: 1 x 12V DC, 2.5φ DC jack
• Power - Power Rating / Adapter: 12V DC; adapter 12V 50W
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
