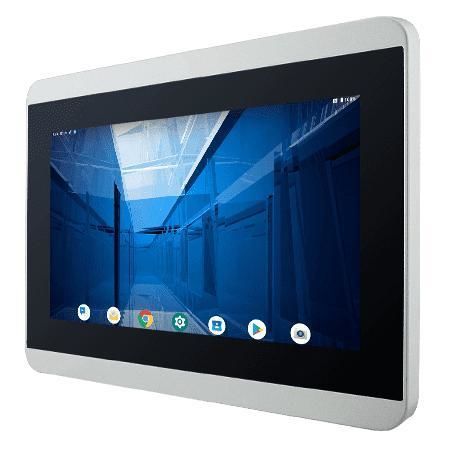

PCAP touchscreen panel PC W07MG3S-GCO1

multitouch screentouch screen1000 nits

Short description
The W07MG3S-GCO1 G-WIN GC-Series 7-inch Panel PC features a projected-capacitive touchscreen, fanless low-power design, front IP65 protection and an edge-to-edge true flat front surface for easy cleaning and integration in industrial HMI applications.

Key Features

• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling with heat sinks and vapor chamber for low power and quiet operation
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for simplified cleaning and maintenance
• Comprehensive I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type-A, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Certifications

• CE
• FCC

Overview — Simplifying Cleaning with True Flat Design
The GC series offers a bezel-to-edge flat front that reduces crevices where dust and liquids accumulate, facilitating cleaning and minimizing ingress risk in production and food-processing environments.

Overview — Quiet Cooling with Low Energy Consumption
Fanless thermal design using heat sinks and vapor chambers delivers quiet operation and improved reliability while keeping energy consumption low for continuous industrial use.

Overview — Complete Water Resistance
Front IP65 rating provides protection from splashes and dust, preserving functionality in wet or contaminated industrial conditions.

Overview — All-Inclusive I/O Ports
Multiple connectivity options support common industrial peripherals and network interfaces to simplify integration with controllers, sensors and displays.

Technical specifications

• Display: Size: 7.0 inches; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution: 1024 x 600; Panel Brightness: 1000 nits; Contrast Ratio: 700:1; View Angles: 75/75/75/70; Active Area: 153.6 x 90 mm
• System Specification: Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz; Memory: 4GB LPDDR4; Storage: Onboard 32 GB; OS: Android 13 (Default); Linux Yocto 5.15.47 with Qt 5.15 (Optional); Linux Ubuntu 22.04 (Optional); WLAN/BT: Support (Optional)
• Mechanical: Dimension: 189.4 x 145.4 x 39.8 mm; Cut out: 177 x 131 mm; Mounting: Panel mount / VESA mount; Enclosure: Aluminum; Cooling System: Fanless Design
• Environment: Operating Humidity: 10% to 90% RH, Non-Condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -20°C to 60°C; Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I; IP rating: Front IP65
• Certification: CE, FCC
• IO Ports: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG); 1 x RS232/422/485 (Default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI (Optional); 1 x Micro SD card slot; Audio: 1 x Speaker (Optional)
• Accessory: Quick Start Guide (Hardcopy); AC Adapter 12V/50W; Power Cord; 3 Pin Terminal Block to DC Jack
• Power: Power Rating: 12V DC with Terminal Block; Adapter: 12V 50W
• Control: Button: 1 x Power Button (Optional)
