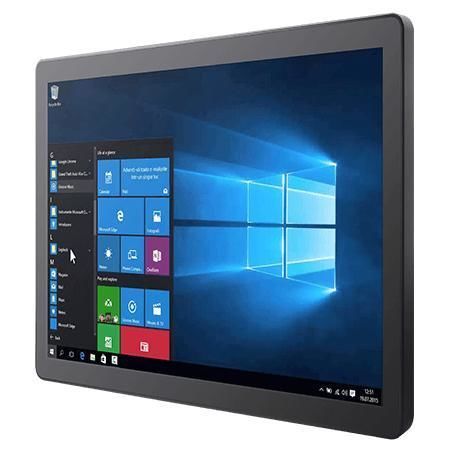

PCAP touchscreen panel PC R19IF7T-GCM1
multitouch screenmulti-touch screen19"

PCAP touchscreen panel PC - R19IF7T-GCM1 - Winmate, Inc. - multitouch screen / multi-touch screen / 19"
PCAP touchscreen panel PC - R19IF7T-GCM1 - Winmate, Inc. - multitouch screen / multi-touch screen / 19"
PCAP touchscreen panel PC - R19IF7T-GCM1 - Winmate, Inc. - multitouch screen / multi-touch screen / 19" - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, multi-touch screen
Display size
19"
Processor
9th Generation Intel® Core™, Intel® Core™ i5-9500TE, Intel® Core™ i7-9700TE, Intel® Core™ i3-9100TE
Resolution
1280 x 1024
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise
Construction
in metal housing, plastic housing
Mounting
VESA mounting
Applications
industrial, for self-service information kiosk, for hygienic applications
Protection level
IP65
Other characteristics
WiFi, Bluetooth
Memory size

Max.: 64 GB

Min.: 0 GB

Description

Key features
  • 19‑inch 1280 x 1024 P‑Cap multi‑touch display
  • Intel® 9th Gen Core™ i3/i5/i7 processor options
  • Front IP65 protection against dust and water splashes
  • True‑flat edge‑to‑edge front panel for easy cleaning
  • DisplayPort up to 4096 x 2304 @60 Hz; HDMI up to 4096 x 2304 @24 Hz
  • VESA and panel mounting for industrial installations


Overview
  • R19IF7T-GCM1 is a 19‑inch industrial panel PC designed for harsh and hygienic environments, featuring a flat aluminum P‑Cap front that minimizes ingress points for liquids and contaminants.
  • Front IP65 rating protects internal electronics from dust and splash water while enabling washdown‑compatible front integration in production lines, kiosks, vehicles and control stations.
  • Configurable platform supports Intel® Core™ i7/i5/i3 CPUs, up to 64GB RAM, multiple SSD options and expansion via M.2 and PCIe to tailor performance to application needs.
  • Comprehensive I/O includes dual Gigabit LAN, 4x USB3.2, RS232/422/485 serial ports, DP/HDMI video outputs, audio and optional WLAN/Bluetooth and TPM 2.0 for security.


Certifications
  • CE
  • FCC


Technical specifications
  • Model: R19IF7T-GCM1
  • Display: 19.0‑inch, 1280×1024, 250 nits, 1000:1, P‑Cap multi‑touch, active area 376.32×301.06 mm
  • Processor options: Intel® Core™ i7‑9700TE (1.8–3.8 GHz, default), i5‑9500TE, i3‑9100TE
  • Chipset: Intel® Q370; Memory: 2x non‑ECC SO‑DIMM up to 64GB
  • Storage: 128GB SSD default; optional 256/512GB/1TB/2TB; 2x SATA III for 2.5" drives (RAID 0/1 optional); 2x M.2 slots
  • Ethernet: 2x Intel Gigabit LAN; USB: 4x USB3.2 Gen2 Type‑A; Serial: RS232/422/485 options
  • Video: DP1.2 (default); HDMI1.4 (optional)
  • Audio: Mic in, Line out, 2x speakers; Indicators: power and storage LEDs; Brightness: adjustment knob
  • Mechanical: 445×370×62 mm; Mounting: VESA and panel mount; Enclosure: metal housing with plastic bezel
  • Environment: Operating 0°C–50°C, 10%–90% RH non‑condensing; Front IP65; Shock/Vibration per MIL‑STD‑810G
  • Power: 12V DC input; Accessories: AC adapter, power cable, quick start guide
