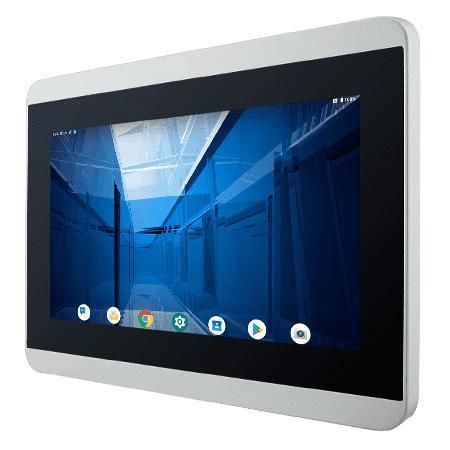

PCAP touchscreen panel PC W07IM3S-GCT1

multitouch screentouch screen7"

Overview
The W07IM3S-GCT1 is a 7-inch front IP65 panel PC designed for industrial HMI applications. It features a projected capacitive (PCAP) multi-touch display, fanless cooling, low power consumption and an edge-to-edge true flat front for easy cleaning and environmental protection. Supported OS options include Android (default) and optional Linux distributions.

Key Features

• ARM A53 Quad Core 2.0GHz processor
• Fanless design with ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Rich I/O: 1 x Micro USB, 2 x USB 2.0, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Android (default) or Linux (optional)

Certifications

• CE
• FCC

Highlights

• True Flat Surface — edge-to-edge bezel reduces dust traps and simplifies cleaning in industrial environments.
• PCAP Multi-Touch — accurate multi-touch input for interactive HMI use.
• Android support by default (Android 11, upgradeable to Android 13); optional Linux Yocto or Ubuntu Server configurations for embedded projects.
• Flexible mounting — panel mount and VESA mount options for wall, desktop or in-vehicle installations.
• Front IP65 rating suitable for harsh industrial conditions.

Technical specifications

• Display
  Size: 7.0 inches
  Touch / Glass: Projected Capacitive Multi Touch Screen
  Resolution: 1024 x 600
  Brightness: 320 nits
  Contrast Ratio: 1000:1
  View Angles: 75,75,75,70
  Active Area: 153.6 x 90 mm
• System Specification
  Processor: ARM A53 (Quad Core 2.0GHz)
  Memory: 4GB LPDDR4
  Storage: 32GB eMMC onboard
  Operating System: Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15; optional Linux Ubuntu Server 22.04
  WLAN / BT: optional
• Mechanical
  Dimensions: 189.4 x 145.4 x 39.8 mm
  Cut out: 177 x 131 mm
  Mounting: Panel mount; VESA mount
  Enclosure: Aluminum
  Cooling: Fanless design
• Environment
  Operating Humidity: 10% to 90% RH, non-condensing
  Operating Temperature: 0°C to 50°C
  Storage Temperature: -20°C to 60°C
  Shock: MIL-STD-810H Method 516.8 Procedure I
  Vibration: MIL-STD-810H Method 514.8 Procedure I
  Front IP rating: IP65
• IO Ports
  USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
  Serial: 1 x RS232/422/485 (default RS232)
  LAN: 1 x 10/100/1000 Mbps
  Video: 1 x Micro HDMI (optional)
  Audio: 1 x Speaker (optional)
  SD Card: 1 x Micro SD (max 32GB)
• Accessories
  Quick Start Guide (hardcopy); AC adapter 12V/50W; power cord; 3-pin terminal block to DC jack
• Power & Control
  Power: 12V DC via terminal block
  Adapter: 12V 50W
  Button: 1 x power button (optional)
