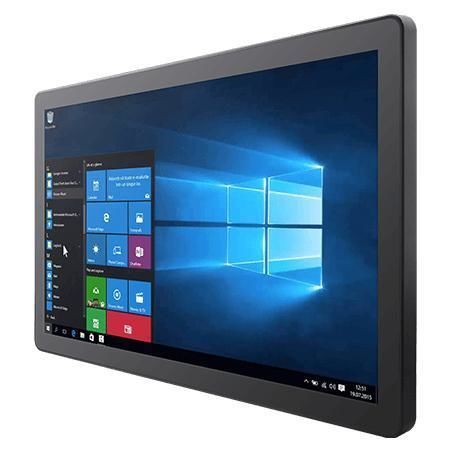

PCAP touchscreen panel PC W22IP3S-GCA3

multitouch screentouch screen21.5"

Overview The W22IP3S-GCA3 is a 21.5-inch industrial front panel PC with front IP65 protection and a projected-capacitive (P-CAP) multi-touch display. Powered by an Intel® Pentium® N4200 (Apollo Lake) processor, it offers a Full HD 1920 x 1080 panel, true flat edge-to-edge front for easy cleaning, fanless cooling and multiple mounting options for industrial deployments.

Key Features

• 21.5" Full HD (1920 x 1080) P-CAP multi-touch display
• Intel® Pentium® N4200 (1.1 GHz up to 2.5 GHz)
• Front IP65 protection against dust and water splashes
• Fanless design with passive cooling fins for reliability
• True flat, edge-to-edge front surface for easy cleaning

Certifications

• CE
• FCC

Display

• Size: 21.5 inches
• Resolution: 1920 x 1080 (Full HD)
• Brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89/89/89/89
• Active area: 476.64 x 268.11 mm

System specification

• Processor: Intel® Pentium® N4200 (Apollo Lake), 1.1 GHz (up to 2.5 GHz)
• Memory: 4GB DDR3L 1600 MHz (default), 8GB optional
• Storage: 128GB SSD default (options: 256GB, 512GB, 1TB; M.2 2242 variants)
• Ethernet: 2 x Intel® Ethernet controllers (I210-AT referenced)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux distributions optional
• WLAN / Bluetooth: optional

Durability & Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Operating humidity: 10%–90% RH, non-condensing
• Shock & vibration: Meets MIL‑STD‑810G shock and vibration methods
• Front protection: IP65

Mounting & Use

• VESA mount (100 x 100 mm) standard; panel mount optional
• Suitable for wall, desk, cabinet or vehicle installations

IO & Controls

• USB: 2 x USB 3.0
• Serial: 1 x RS-232 (default) with RS-422/485 options
• LAN: 1 x RJ45 10/100/1000 Mbps + 1 x RJ45 (second LAN)
• Buttons: Power and Reset

Mechanical & Power

• Dimensions: 530.2 x 321.7 x 54.9 mm
• Enclosure: Metal housing with plastic bezel
• Power: 12V DC via terminal block (AC adapter 12V/50W included)

Accessories

• Quick Start Guide (hardcopy)
• Driver CD & User Manual (as supplied)
• AC Adapter 12V/50W, power cord, 3‑pin terminal block to DC jack

Model / Ordering

• Model: W22IP3S-GCA3
• Series: G-WIN GC Series
