PCAP touchscreen panel PC W24IE3S-GCA2
multitouch screentouch screen24"

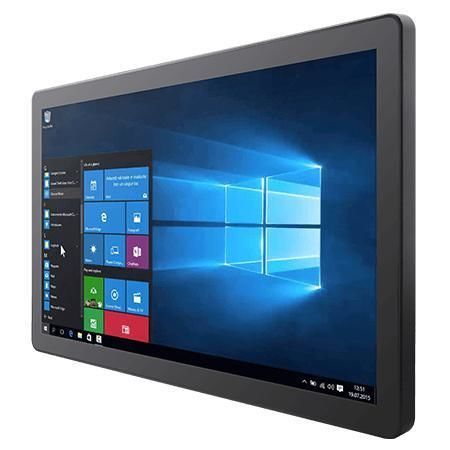

PCAP touchscreen panel PC - W24IE3S-GCA2 - Winmate, Inc. - multitouch screen / touch screen / 24"
PCAP touchscreen panel PC - W24IE3S-GCA2 - Winmate, Inc. - multitouch screen / touch screen / 24"
PCAP touchscreen panel PC - W24IE3S-GCA2 - Winmate, Inc. - multitouch screen / touch screen / 24" - image - 2
PCAP touchscreen panel PC - W24IE3S-GCA2 - Winmate, Inc. - multitouch screen / touch screen / 24" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, touch screen
Display size
24"
Processor
Intel® Celeron® N6211
Resolution
1920 x 1080
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, in metal housing, plastic housing
Mounting
VESA mounting, in-vehicle, wall-mounted, desktop
Applications
industrial
Protection level
IP65
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Overview
Winmate W24IE3S-GCA2 (G-WIN GC Series) is a 24-inch industrial Panel PC with a true flat front, front IP65 protection, fanless cooling and versatile mounting options (VESA) for wall, desk and in-vehicle use. It integrates a 24" P-CAP touchscreen powered by Intel® Celeron® N6211 and offers configurable memory and SSD storage to meet industrial application requirements.

Key Features
  • 24" 1920 x 1080 with Projected Capacitive (P-CAP) multi-touch
  • Intel® Celeron® Elkhart Lake N6211 processor
  • Fanless design with ultra-low power consumption
  • Front IP65 protection against water and dust
  • True flat, edge-to-edge front surface for easy cleaning


Certifications
  • CE
  • FCC


Technical specifications
  • Model / Brand: W24IE3S-GCA2 / Winmate
  • Display: Size — 24.0 inches; Touch / Glass — Projected Capacitive Multi Touch Screen; Resolution — 1920 x 1080; Panel Brightness — 250 nits; Contrast Ratio — 3000:1; View Angles — 89,89,89,89; Active Area — 527.04 x 296.46 mm
  • System: Processor — Intel® Celeron® N6211 (up to 3.0 GHz); Memory — 4 GB (Default), optional 8 GB or 16 GB; Storage — 128 GB SSD (Default), optional 256 GB / 512 GB / 1 TB / 2 TB SSD; Ethernet controller — 2 x Intel® Ethernet Controller; Security — TPM 2.0; OS options — Windows 11 IoT Enterprise (64-bit) optional, Windows 11 Pro 64-bit optional, Windows 10 IoT Enterprise (64-bit) optional, Linux Ubuntu 22.04 optional
  • Environment: Operating Humidity — 10% to 90% (Non-Condensing); Operating Temperature — 0 ~ 50°C; Storage Temperature — -30 ~ 70°C; Shock — MIL-STD-810G Method 516.6; Vibration — MIL-STD-810G Method 514.6; Front IP rating — IP65
  • IO Ports: USB — 2 x USB3.2 Gen2 Type-A; Serial — 1 x RS232 (Default) / 422 / 485; LAN — 2 x 2.5 Giga LAN RJ45; Video — 1 x HDMI 2.0 (Optional)
  • Mechanical: Dimension — 588 x 358 x 55 mm; Mounting — VESA mount; Enclosure — Metal housing with plastic bezel; Cooling — Fanless design
  • Accessories: User Manual (Hardcopy), AC Adapter, Power Cable
  • Control: 1 x Power Button, 1 x Reset Button
  • Power: Power Rating — 12V DC input (Default); optional 9 ~ 36V DC input
