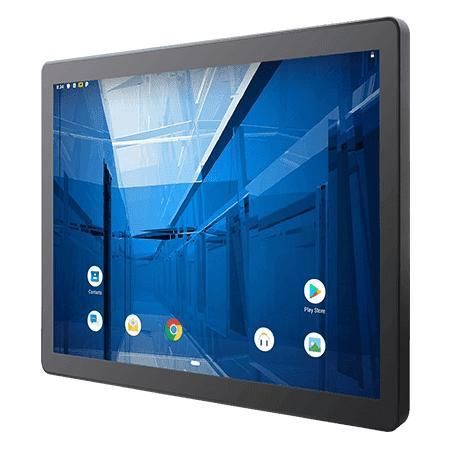

PCAP touchscreen panel PC R19IM3S-GCM1

multitouch screentouch screen19"

Overview
The R19IM3S-GCM1 is a 19.0-inch G-WIN GC-Series front IP65 PCAP panel PC designed for industrial HMI and embedded applications. It features a true flat edge-to-edge front surface for easier cleaning, fanless cooling for low power operation, flexible mounting (panel and VESA) and a broad set of I/O. Supports Android (default) or Linux platforms for integration.

Key Features

• ARM A53 Quad Core 2.0 GHz CPU
• Fanless cooling system and ultra-low power design
• Front IP65 protection against water and dust
• True flat edge-to-edge front surface for easy cleaning
• Rich I/O: 1 x Micro USB (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Supports Android (default) or Linux (Yocto / Ubuntu Server)

Certifications

• CE
• FCC

Product Details

• Projected capacitive (PCAP) multi-touch screen for responsive touch interaction
• True-flat front bezel reduces ingress points and simplifies maintenance
• Optional modules: WLAN, Bluetooth, speakers, Micro HDMI for expanded connectivity
• VESA 100 x 100 mm and panel-mount options for wall, desk or vehicle installation
• Metal housing with plastic bezel and fanless thermal design suited to industrial environments

Technical Specifications

• Display Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 376.32 x 301.06 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (upgradeable to Android 13) default; Linux Yocto 5.15.47 with Qt 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• WLAN / Bluetooth: optional support
• USB Ports: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps
• Video: 1 x Micro HDMI output (optional)
• Audio: 2 x Speaker (optional)
• SD Card Slot: 1 x Micro SD (max 32 GB)
• Dimensions: 445 x 370 x 51 mm
• Cut out: 388 x 280 mm
• Mounting: Panel mount; VESA mount (100 x 100 mm)
• Enclosure: Metal housing with plastic bezel
• Cooling System: Fanless design
• Power Rating: 12 V DC with terminal block (default); optional 9 ~ 36 V input
• Adapter: references to 12 V 84 W and AC Adapter 12 V / 50 W in accessories
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• Front IP Rating: IP65
• Certifications: CE, FCC
• Accessories: Quick Start Guide (Hardcopy); AC Adapter 12 V / 50 W; Power Cord; 3-Pin Terminal Block to DC Jack
• Control: 1 x Power Button (optional)
