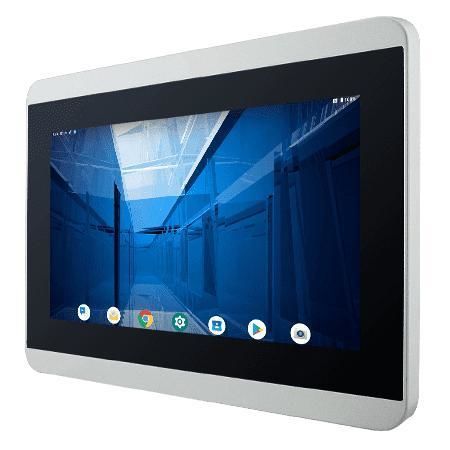

PCAP touchscreen panel PC W07IM3S-GCO1

multitouch screen1000 nits7"

Overview
The W07IM3S-GCO1 is a 7.0-inch PCAP panel PC designed for industrial HMI and embedded applications. It integrates an ARM A53 quad‑core 2.0 GHz processor, projected capacitive multi‑touch display, fanless thermal design and front IP65 protection with a true edge‑to‑edge flat front for easy cleaning and maintenance.

Key features

• ARM A53 Quad Core 2.0 GHz processor
• Projected capacitive (PCAP) multi‑touch screen, 1024 x 600 resolution, 1000 nits brightness
• Front IP65 protection for water and dust resistance
• True flat edge‑to‑edge front surface for simplified cleaning
• Fanless design for ultra‑low power and silent operation
• Comprehensive I/O: 1 x Micro USB OTG, 2 x USB 2.0 Type‑A, 1 x RS232/422/485 (default RS232), 1 x RJ45 (10/100/1000), 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Supports Android 11 (default, upgradeable to Android 13) and optional Linux variants
• Panel mount and VESA mounting options (wall, desk, vehicle)

Certifications

• CE
• FCC

Technical specifications

• Display: 7.0 inches; Projected Capacitive Multi Touch; Resolution 1024 x 600; Brightness 1000 nits; Contrast 700:1; View angles 75/75/75/70; Active area 153.6 x 90 mm.
• System: Processor ARM A53 (Quad Core 2.0 GHz); Memory 4 GB LPDDR4; Storage eMMC onboard 32 GB; OS Android 11 (default, upgradeable to Android 13); optional Linux Yocto 5.15.47 with Qt 5.15 and Linux Ubuntu Server 22.04.
• Mechanical: Dimensions 189.4 x 145.4 x 39.8 mm; Cut-out 177 x 131 mm; Enclosure Aluminum; Mounting Panel mount and VESA; Cooling Fanless.
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C–50°C; Storage temperature -20°C–60°C; Shock MIL‑STD‑810H Method 516.8 Proc I; Vibration MIL‑STD‑810H Method 514.8 Proc I; Front IP65.
• I/O: 2 x USB 2.0 Type‑A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485 (default RS232); 1 x RJ45 10/100/1000 Mbps; 1 x Micro HDMI (optional); 1 x Speaker (optional); 1 x Micro SD slot (up to 32 GB).

Accessories & power

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W and power cord; 3‑pin terminal block to DC jack
• Power rating: 12V DC via terminal block; adapter: 12V 50W

Recommended applications

• Industrial automation HMI and control panels
• In‑vehicle and mobile control terminals
• Embedded systems, kiosks and compact operator interfaces
