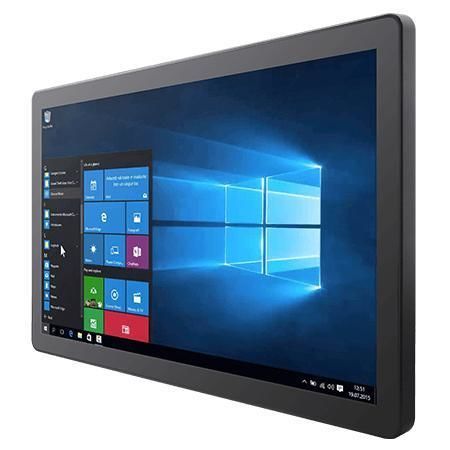

PCAP touchscreen panel PC W24IF7T-GCA2

multitouch screentouch screen24"

Overview
Winmate W24IF7T-GCA2 is a 24-inch front IP65 PCAP panel PC designed for industrial applications. It features an edge-to-edge true flat front, Intel® Core™ i3/i5/i7 (9th Gen) processor options, front protection against water and dust, and flexible storage and mounting choices.

Key Features

• 24" FHD (1920 x 1080) with projected capacitive multi-touch (P-CAP)
• Intel® 9th Generation Core™ i3/i5/i7 processor options
• Front IP65 protection against water and dust
• True flat edge-to-edge front surface for easy cleaning
• Flexible storage: one 2.5" HDD bay and one SSD socket; optional M.2 and SATA expansion

Product Highlights

• Edge-to-edge flat aluminum front reduces liquid ingress and simplifies maintenance.
• Front IP65 rating suitable for dusty or splash-prone industrial environments.
• Multiple mounting options: VESA, panel mount, wall, desk and vehicle installations.

Display

• Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89 / 89 / 89 / 89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel Core i7-9700TE (default); optional i5-9500TE, i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB
• Storage: 128GB SSD default; optional up to 2TB; 2 x SATA III supporting RAID 0/1
• Ethernet: 2 x Intel® Gigabit controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu 20.04 (optional)
• WLAN / Bluetooth: optional (via M.2)

IO Ports

• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); HDMI 1.4 optional
• Audio: Mic in, Line out, 2 x speakers
• Expansion: 2 x M.2 (WiFi, SSD), optional PCIe x16
• Indicators: LEDs for power and storage; brightness adjustment knob

Environment

• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock & Vibration: MIL-STD-810G compliant (methods 516.6 & 514.6)
• Front IP rating: IP65

Certification

• CE
• FCC

Mechanical

• Dimensions: 588 x 358 x 66 mm
• Mounting: VESA and panel mount
• Enclosure: Metal housing with plastic bezel
• Cooling: fan design

Accessory

• Quick Start Guide (hardcopy)
• AC adapter
• Power cable

Control

• Buttons: 1 x power, 1 x reset

Power

• Power input: 12V DC

Technical specifications (summary)

• Model: W24IF7T-GCA2
• Brand: Winmate
• Display: 24.0" FHD P-CAP multi-touch, 250 nits
• CPU options: Intel Core i7/i5/i3 (9th Gen)
• Memory: up to 64GB (2 x SO-DIMM)
• Storage: 128GB SSD default, up to 2TB, RAID support
• LAN: 2 x Gigabit
• USB: 4 x USB3.2 Gen2
• Front protection: IP65
• Dimensions: 588 x 358 x 66 mm
• Certifications: CE, FCC
