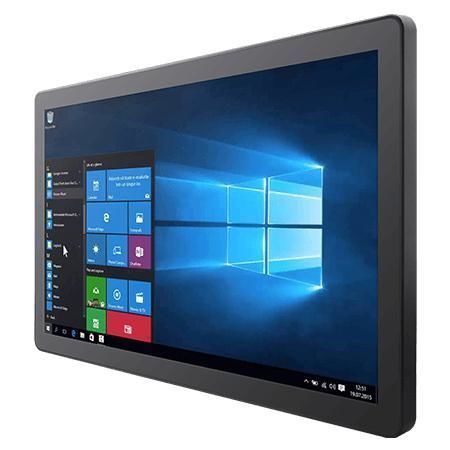

PCAP touchscreen panel PC W22IAD7T-GCA3

multitouch screen21.5"Intel® Alder Lake-S

Product
The W22IAD7T-GCA3 is a 21.5-inch front IP65 PCAP panel PC designed for industrial applications, supporting 12th/14th Gen Intel® Core™ processors and a true flat, edge-to-edge front for easy cleaning.

Key Features

• 21.5" FHD (1920 x 1080) with projected capacitive multi-touch (P-CAP)
• 12th / 14th Gen Intel® Core™ processors (i3 / i5 / i7 / i9 configurable)
• Front IP65 protection against water and dust
• Edge-to-edge flat front surface for hygiene and maintenance
• Rich I/O: up to 4 x USB 3.2, serial ports, 2 x 2.5G LAN, DisplayPort/HDMI options

Overview

• Power: 12V single-voltage DC input for simplified integration with standard power sources.
• Multi-display support: LVDS / eDP interfaces for flexible display configurations in industrial signage and control systems.
• I/O and expansion: M.2 NVMe slot, M.2 E-Key for Wi‑Fi, 2 x SATA III for 2.5" drives (RAID optional), ample USB and serial connectivity for peripherals.
• Rugged front: Front IP65 rating and fan-cooled metal enclosure for reliable operation in harsh environments.

Certifications

• CE
• FCC

Technical specifications

• Model: W22IAD7T-GCA3
• Manufacturer: Winmate
• Display: 21.5" FHD, P-CAP multi-touch, 1920 x 1080, 250 nits, 3000:1 contrast, active area 476.64 x 268.11 mm
• Processor: Default i3-12100TE; optional i5-12500TE / i7-12700TE / i9-12900TE and 14th-gen T variants (i3/i5/i7/i9)
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64GB
• Storage: 128GB SSD default; optional 256GB–4TB; 1 x M.2 2280 NVMe, 2 x SATA III
• LAN: 2 x 2.5 Giga LAN (Intel®)
• I/O: 4 x USB 3.2, 1 x DP1.4a (DP++), optional HDMI 2.0b, 1 x Mic-in, 1 x Line-out, 2 x speakers, serial ports (RS232/422/485)
• Security: TPM 2.0
• Dimensions / Mounting: 530 x 322 x 62 mm; VESA and panel mount
• Environment: Operating 0°C to 50°C, 10%–90% RH non-condensing; storage -20°C to 60°C
• Shock / Vibration: MIL-STD-810G (516.6 shock, 514.6 vibration)
• Power: 12V DC in
• Accessories: Quick Start Guide (hardcopy), AC adapter, power cable
