PCAP touchscreen panel PC R15MG3S-GCC3
multitouch screen15"ARM® Cortex®-A55 Quad-core

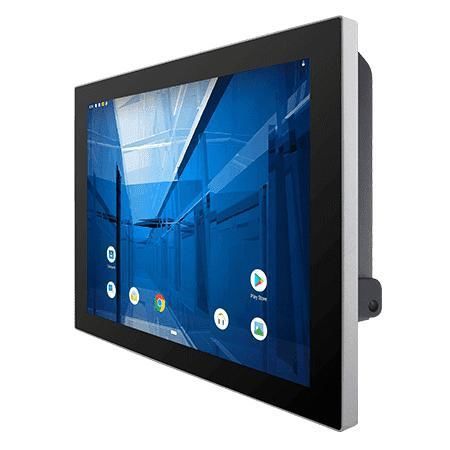

PCAP touchscreen panel PC - R15MG3S-GCC3 - Winmate, Inc. - multitouch screen / 15" / ARM® Cortex®-A55 Quad-core
PCAP touchscreen panel PC - R15MG3S-GCC3 - Winmate, Inc. - multitouch screen / 15" / ARM® Cortex®-A55 Quad-core
PCAP touchscreen panel PC - R15MG3S-GCC3 - Winmate, Inc. - multitouch screen / 15" / ARM® Cortex®-A55 Quad-core - image - 2
PCAP touchscreen panel PC - R15MG3S-GCC3 - Winmate, Inc. - multitouch screen / 15" / ARM® Cortex®-A55 Quad-core - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen
Display size
15"
Processor
ARM® Cortex®-A55 Quad-core, ARM Cortex-A78
Resolution
1024 x 768
Operating system
Linux® Ubuntu™, Linux® Yocto, Android
Construction
fanless, aluminum frame
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
WiFi, Bluetooth, high-brightness, USB 2.0, Ethernet, RJ45, USB Type-C
Memory size

4 GB

Description

Product Overview
  • 15" ARM A78 + A55 G-WIN GC-Series Front IP65 PCAP Panel PC with projected capacitive multi-touch, fanless cooling (heat sinks & vapor chambers), true flat edge-to-edge front and aluminum enclosure. Designed for industrial HMI and control applications with panel and VESA mounting options.


Key Features
  • Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • Display: 15.0 inches, 1024 x 768, 300 nits (std) / 1000 nits (opt)
  • Memory / Storage: 4 GB LPDDR4, Onboard 32 GB
  • Front IP65 protection, fanless thermal design, low power consumption
  • I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485 (default RS232), 1 x RJ45 (Gigabit LAN), 1 x Micro SD slot, Micro HDMI (optional)


Design & Cooling
  • True flat, edge-to-edge front reduces dust accumulation and simplifies cleaning and maintenance
  • Fanless solution with heat sinks and vapor chambers for quiet, reliable operation in industrial environments


I/O & Connectivity
  • Multiple interfaces for peripherals and automation equipment; optional WLAN, Bluetooth, audio and high-brightness display variants available
  • Standard Gigabit LAN and serial port for industrial integration


Certifications
  • CE
  • FCC


Technical specifications
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Active area: 304.1 x 228.1 mm; Dimensions: 363 x 278 x 45 mm; Cut out: 349 x 263 mm
  • Operating System: Android 13 (default); Linux Yocto 5.15.47 with QT 5.15 (optional); Ubuntu 22.04 (optional)
  • Operating: 0°C to 50°C; Storage: -20°C to 60°C; Humidity: 10%–90% RH, non‑condensing
  • Shock / Vibration: MIL‑STD‑810H Method 516.8 / 514.8
  • Power: 12V DC via terminal block (default); 9–36V optional; Adapter: 12V 50W
  • Accessories: Quick Start Guide (hardcopy), AC adapter 12V/50W, power cord, 3‑pin terminal block to DC jack
