PCAP touchscreen panel PC R12IM3S-GCM2
multitouch screen12.1"Arm® Cortex®-A53 Quad-core

PCAP touchscreen panel PC - R12IM3S-GCM2 - Winmate, Inc. - multitouch screen / 12.1" / Arm® Cortex®-A53 Quad-core

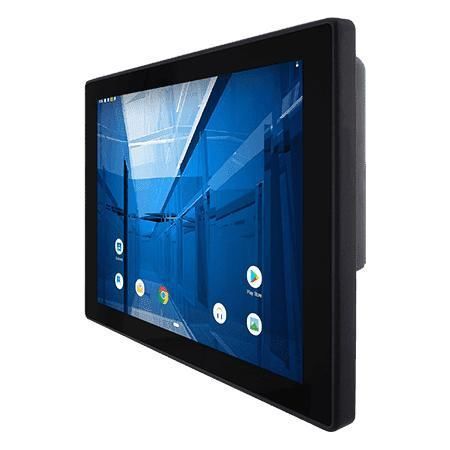

PCAP touchscreen panel PC - R12IM3S-GCM2 - Winmate, Inc. - multitouch screen / 12.1" / Arm® Cortex®-A53 Quad-core
PCAP touchscreen panel PC - R12IM3S-GCM2 - Winmate, Inc. - multitouch screen / 12.1" / Arm® Cortex®-A53 Quad-core - image - 2
PCAP touchscreen panel PC - R12IM3S-GCM2 - Winmate, Inc. - multitouch screen / 12.1" / Arm® Cortex®-A53 Quad-core - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen
Display size
12.1"
Processor
Arm® Cortex®-A53 Quad-core
Resolution
1024 x 768
Operating system
Linux, Android
Construction
fanless, aluminum frame
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
WiFi, Bluetooth, USB 2.0, Ethernet, RJ45
Memory size

4 GB

Description

Overview
  • 12.1-inch IP65 front PCAP Panel PC R12IM3S-GCM2 for industrial HMI and embedded applications
  • ARM A53 Quad Core 2.0GHz CPU, fanless design and low power consumption
  • True flat, edge-to-edge front with IP65 protection against water and dust
  • Projected Capacitive (PCAP) multi-touch display with 1024 x 768 resolution
  • Multiple I/O including Micro USB, 2x USB 2.0, RS232/422/485, RJ45, Micro SD slot; optional Micro HDMI, WLAN, Bluetooth
  • Supports Android 11 (default, upgradable) or optional Linux distributions


Key features
  • ARM A53 Quad Core 2.0GHz processor
  • Fanless cooling for silent, maintenance-free operation
  • Front IP65 for water and dust resistance
  • True flat, edge-to-edge front surface for easy cleaning
  • Projected capacitive multi-touch for accurate touch input
  • Rich I/O: 2x USB 2.0, 1x Micro USB OTG, 1x RS232/422/485, 1x RJ45, 1x Micro SD slot; optional Micro HDMI, speakers, WLAN, Bluetooth
  • Flexible OS options: Android 11 (upgradeable to Android 13) or Linux Yocto/Ubuntu Server


Product highlights / user benefits
  • Flat, edge-to-edge front reduces contamination and simplifies cleaning in industrial environments
  • Responsive PCAP multi-touch improves operator efficiency for HMI applications
  • Flexible mounting (panel or VESA) supports wall, desk or vehicle installations
  • Optional brightness and I/O configurations adapt the unit to varied lighting and connectivity requirements
  • Certifications for international deployment ease integration into regulated environments


Certifications
  • CE
  • FCC


Technical specifications
  • Display: Projected Capacitive Multi Touch, 12.1 inches, 1024 x 768
  • Brightness: 500 nits (standard); 1000 nits (optional)
  • Processor: ARM A53 Quad Core 2.0 GHz
  • Memory: 4 GB LPDDR4
  • Storage: eMMC onboard 32 GB
  • OS: Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 with Qt 5.15 (optional); Ubuntu Server 22.04 (optional)
  • I/O: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485; 1 x LAN 10/100/1000 Mbps; 1 x Micro SD slot (max 32 GB); optional Micro HDMI; optional 2 x speakers
  • Power: 12V DC via terminal block (default); optional 9~36V; adapter 12V 50W
  • Dimensions: 296.2 x 226.7 x 45.5 mm; Cut out: 284 x 208 mm
  • Mounting: Panel mount / VESA mount
  • Enclosure: Aluminum; Cooling: Fanless
  • Operating temp/humidity: 0°C to 50°C; 10% to 90% RH non-condensing
  • Shock & vibration: MIL-STD-810H Method 516.8 / 514.8
  • Front protection: IP65
  • Certifications: CE, FCC
