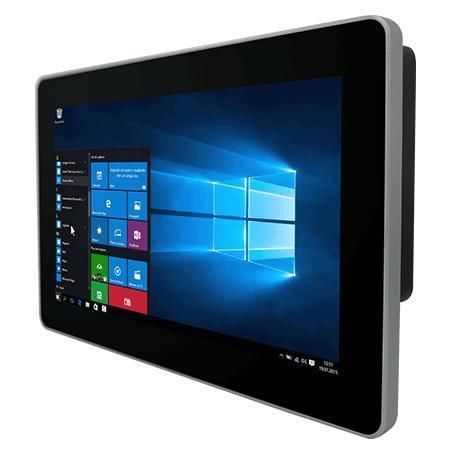

PCAP touchscreen panel PC W10IE3S-GCH2

multitouch screentouch screen10.1"

Overview
The W10IE3S-GCH2 is a 10.1-inch front IP65 PCAP Panel PC from the G-WIN GC series designed for industrial HMI and embedded applications. It features a true flat, edge-to-edge front for easy cleaning, a fanless thermal design for silent operation and reliability, and multiple mounting options for wall, desk, panel or in-vehicle installation.

Key Features

• 10.1-inch 1280 x 800 projected capacitive (PCAP) multi-touch display
• Intel® Celeron® Elkhart Lake N6211 processor for low power consumption
• Fanless cooling for silent operation and improved reliability
• Front IP65 rating for protection against water and dust
• True flat, edge-to-edge front for easy cleaning

Durability & Mounting
Front panel IP65 protects against ingress of dust and water splashes. Supports VESA and panel mount options allowing installation in industrial cabinets, machine front panels, dashboards and vehicles.

Cooling & Power
Fanless passive cooling with heat dissipation optimized for low-power Elkhart Lake CPUs. Power input: 12V DC.

Certifications

• CE
• FCC

I/O and Connectivity
Multiple industrial I/O: 2 x USB 3.2 Gen2 (Type-A), 1 x serial (RS232 default; configurable to RS422/485), 2 x 2.5 Giga LAN (RJ45). Optional HDMI 2.0 video output. Built-in speaker for simple audio notifications.

Form Factor & Enclosure
Metal housing with aluminum bezel. Dimensions: 264.57 x 173.29 x 35.7 mm. True flat bezel reduces dirt accumulation and simplifies cleaning procedures.

Environment & Reliability
Operating humidity: 10%–90% non-condensing. Operating temperature: 0–50°C. Storage temperature: -30–70°C. Shock and vibration tested to MIL-STD-810G (Method 516.6, 514.6) for industrial reliability.

Accessories

• User manual (hardcopy)
• AC adapter
• Power cable

Product Highlights

• True flat front for hygiene and easy maintenance
• Front IP65 for protection in dusty or wet industrial environments
• Fanless design for silent, low-maintenance operation
• Flexible mounting: VESA and panel mount support

Technical Specifications

• Model: W10IE3S-GCH2
• Series: G-WIN GC
• Display: 10.1 inches, 1280 x 800, 350 nits, 800:1 contrast, 85/85/85/85 viewing angles, active area 216.96 x 135.6 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; 8 GB / 16 GB optional
• Storage: 128 GB SSD default; 256 GB / 512 GB / 1 TB / 2 TB optional
• Ethernet: 2 x Intel® Ethernet Controller, 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS Options: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04
• I/O: 2 x USB 3.2 Gen2 Type-A, 1 x Serial (RS232 default / RS422/485), 1 x HDMI 2.0 (optional), 1 x Speaker
• Dimensions: 264.57 x 173.29 x 35.7 mm
• Mounting: VESA mount, Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12V DC input
• Environmental: Operating 0–50°C; Storage -30–70°C; Humidity 10%–90% non-condensing
• Reliability: MIL-STD-810G shock and vibration
