PCAP touchscreen panel PC W22IF7T-GCA3

multitouch screen21.5"Intel® Core™ i5-9500TE

Overview

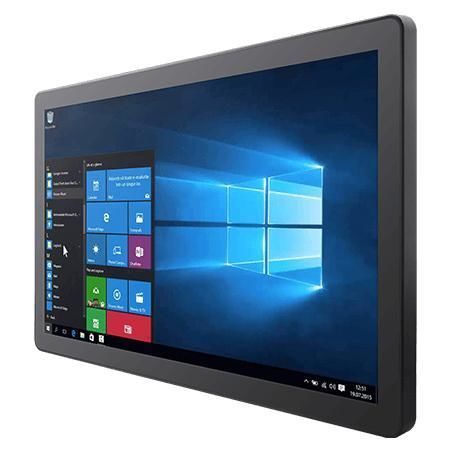

Winmate 21.5-inch flat aluminum P-Cap Panel PC W22IF7T-GCA3 with an edge-to-edge front surface designed for easy cleaning and to prevent liquid ingress.

Key Features

• 21.5-inch 1920 x 1080 projected capacitive multi-touch
• Intel® 9th Generation Core™ processors: i7-9700TE / i5-9500TE / i3-9100TE
• Front IP65 protection against dust and water splashes
• True-flat edge-to-edge front surface for easy maintenance
• DisplayPort 4096 x 2304@60Hz; HDMI 4096 x 2304@24Hz (configuration dependent)
• VESA and panel mounting for wall, desk or in-vehicle installation

Certifications

• CE
• FCC

Product details
Display: 21.5 inches, 1920 x 1080, 250 nits brightness, 3000:1 contrast, active area 476.64 x 268.11 mm. System: Intel® Q370 chipset; CPU options as listed; memory 2 x non-ECC SO-DIMM up to 64GB. Storage: 128GB SSD default; options to 2TB; 2 x SATA III for 2.5" drives with RAID 0/1 optional. Security: TPM 2.0. OS: Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu optional.

Environment & Reliability
Operating temperature 0°C to 50°C; storage -20°C to 60°C; operating humidity 10%–90% RH non-condensing; shock and vibration per MIL-STD-810G; front IP65 for industrial use.

I/O & Expansion

• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45 (Intel controllers)
• Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: 2 x M.2 (one for WiFi, one for SSD), optional PCIe x16

Mechanical & Power
Dimensions: 530 x 322 x 62 mm. Mounting: VESA 100 x 100 and 75 x 75 mm, panel mount. Enclosure: metal housing with plastic bezel. Cooling: fan design (configuration dependent). Power: 12V DC input.

Included accessories

• Quick Start Guide (hardcopy)
• AC adapter and power cable
• Driver CD & user manual
