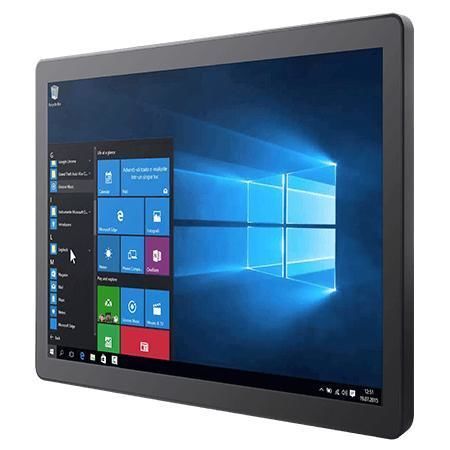

PCAP touchscreen panel PC R19IP3S-GCM1

multitouch screentouch screen19"

Overview
The Winmate R19IP3S-GCM1 is a 19-inch industrial P-CAP panel PC with a true flat, easy-to-clean aluminum front and front IP65 protection. It integrates an Intel® Pentium® N4200 (Apollo Lake) processor in a fanless design for reliable operation in industrial environments.

Key features

• 19" 1280 x 1024 with projected capacitive (P-CAP) multi-touch
• Intel® Pentium® N4200 processor (1.1 GHz up to 2.5 GHz)
• Fanless cooling with passive cooling fins for low power and low noise
• Front IP65 protection against water and dust
• True flat edge-to-edge front surface for hygienic cleaning

Certifications

• CE
• FCC

Product highlights
Front IP65 sealing protects the device from dust and splashes while the flat aluminum P-CAP front prevents liquid ingress and simplifies cleaning. The fanless architecture reduces maintenance and acoustic footprint. Multiple mounting options including VESA and optional panel mount support wall, desk and vehicle installations.

Technical specifications

• Model: R19IP3S-GCM1
• Brand: Winmate
• Display - Size: 19.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Display - Resolution: 1280 x 1024
• Display - Panel Brightness: 250 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 85/85/80/80
• Display - Active Area: 376.32 x 301.06 mm
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB DDR3L (default), 8 GB optional
• Storage: 128 GB SSD (default); optional 256/512 GB SSD, 1 TB
• Ethernet controller: 2 x Intel® Ethernet Controller (I210-AT)
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu optional
• WLAN / Bluetooth: optional
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock / Vibration: MIL-STD-810G (516.6 / 514.6)
• IP rating: Front IP65
• IO Ports: 2 x USB 3.0; 1 x RS232 (default) / RS422 / RS485; 2 x RJ45 (including 10/100/1000 Mbps)
• Mechanical - Dimension: 445 x 370 x 51 mm
• Mechanical - Mounting: VESA 100 x 100 mm (default); panel mount optional
• Enclosure: Metal housing with plastic bezel
• Cooling System: Fanless (passive cooling fins)
• Accessories: Quick Start Guide (hardcopy), AC Adapter 12V/50W, Power Cord, 3-pin Terminal Block to DC Jack, Driver CD & User Manual
• Control Buttons: 1 x Power, 1 x Reset
• Power Rating: 12V DC via terminal block
