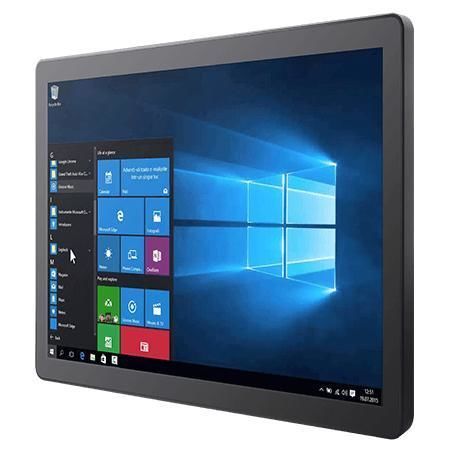

PCAP touchscreen panel PC R19IAD7T-GCM1

multitouch screentouch screen19"

Overview
The R19IAD7T-GCM1 is a 19.0 inches P-CAP Panel PC from the G-WIN GC series, powered by 12th Gen Intel® Core™ (Alder Lake S) processors. It offers a projected-capacitive multi-touch display, front IP65 protection against water and dust, a true flat edge-to-edge front surface for easy cleaning, extensive I/O including USB 3.2 and serial ports, multi-display support (LVDS/eDP) and a 12V single-voltage DC input for simplified industrial installation and power management.

Key Features

• 19.0 inches 1280 x 1024 P-CAP multi-touch display
• 12th Gen Intel® Core™ processor options (i3 / i5 / i7 / i9 and T/TE variants)
• Front IP65 protection against water and dust
• True flat, edge-to-edge front for hygienic and easy cleaning
• Multiple I/O: up to 4 x USB 3.2, 2 x serial ports, 2 x 2.5G LAN

Product Highlights

• 12V single-voltage power input for compatibility with standard industrial power supplies and simplified wiring
• Multi-display support via LVDS/eDP for monitoring, control and signage configurations
• Extensive connectivity to integrate automation equipment and peripherals
• Designed for industrial use with MIL-STD-810G shock and vibration compliance and front IP65 protection

Technical specifications

• Model: R19IAD7T-GCM1
• Display: 19.0 inches, P-CAP multi-touch, 1280 x 1024, 250 nits, 1000:1 contrast, view angles 85/85/80/80, active area 376.32 x 301.06 mm
• Processor: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE and newer T-series variants
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5-inch drives (RAID support)
• Ethernet: 2 x 2.5 Giga LAN (Intel®)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04 (Linux option does not support Wake on Touch)
• IO Ports: 4 x USB 3.2 Gen2x1 (or Gen1 for some SKUs), 1 x RS232/422/485 + 1 x RS232, 1 x DP1.4a (DP++), optional HDMI 2.0b, Mic In, Line Out, 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & Controls: power and storage LEDs; brightness adjustment knob; power and reset buttons
• Mechanical: 445 x 370 x 62 mm; VESA and panel mount; metal housing with plastic bezel; fan cooling
• Environment: Operating 0°C to 50°C, storage -20°C to 60°C, humidity 10%–90% RH non-condensing; shock/vibration MIL-STD-810G
• Power: 12V DC input
• Certifications: CE, FCC
• Accessories: Quick Start Guide (hardcopy), AC adapter, power cable
