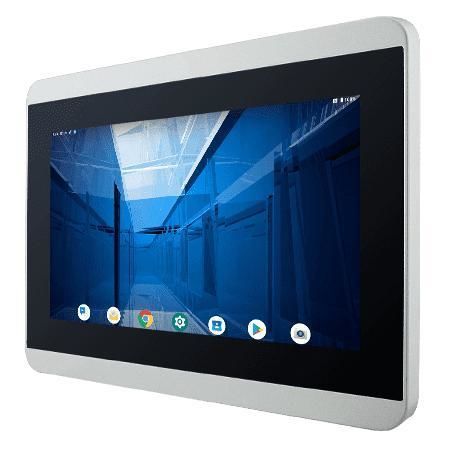

PCAP touchscreen panel PC W07MG3S-GCT1

multitouch screentouch screen7"

Product Presentation
The G-WIN GC-series 7.0" front IP65 PCAP panel PC W07MG3S-GCT1 integrates a projected-capacitive touchscreen, fanless cooling and an edge-to-edge front surface for easy cleaning and industrial use.

Key Features

• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling system and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Rich I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Overview

• Easy maintenance: flat, bezel-free front reduces crevices where liquids or contaminants can accumulate.
• Quiet, reliable cooling: fanless design with heat sinks and vapor chamber for silent operation and improved longevity.
• Front IP65 rating: resists splashes and dust for deployment in demanding industrial environments.
• Versatile connectivity: multiple interfaces to connect peripherals and industrial devices.

Certifications

• CE
• FCC

Accessories (included)

• Quick Start Guide (Hardcopy)
• AC Adapter 12V/50W
• Power Cord
• 3 Pin Terminal Block to DC Jack

Mounting & Enclosure

• Panel mount and VESA mount options
• Aluminum enclosure

Environment & Durability

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• Front IP rating: IP65

IO & Expansion

• USB: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video: 1 x Micro HDMI output (optional)
• Audio: 1 x Speaker (optional)
• SD Card: 1 x Micro SD card slot

Operating System Options

• Android 13 (default)
• Linux Yocto 5.15.47 with Qt 5.15 (optional)
• Linux Ubuntu 22.04 (optional)

Power

• Power input: 12V DC with terminal block
• Adapter: 12V 50W

Special Notes

• Optional WLAN and Bluetooth support
• Optional Micro HDMI and speaker depending on configuration

Caractéristiques / Spécifications techniques

• Model: W07MG3S-GCT1
• Display Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 600
• Panel Brightness: 320 nits
• Contrast Ratio: 1000:1
• View Angles: 75, 75, 75, 70
• Active Area: 153.6 x 90 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (Default); Linux Yocto 5.15.47 with Qt 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• Dimension: 189.4 x 145.4 x 39.8 mm
• Cut out: 177 x 131 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Aluminum
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP Rating: Front IP65
• Certification: CE, FCC
• USB Ports: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG)
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video Output: 1 x Micro HDMI (Optional)
• Audio: 1 x Speaker (Optional)
• SD Card Slot: 1 x Micro SD card slot
• Power Rating: 12V DC with Terminal Block
• Adapter: 12V 50W
• Buttons: 1 x Power Button (Optional)
