PCAP touchscreen panel PC R15IE3S-GCC3(HB)

multitouch screen15"Intel® Celeron® N6211

Overview

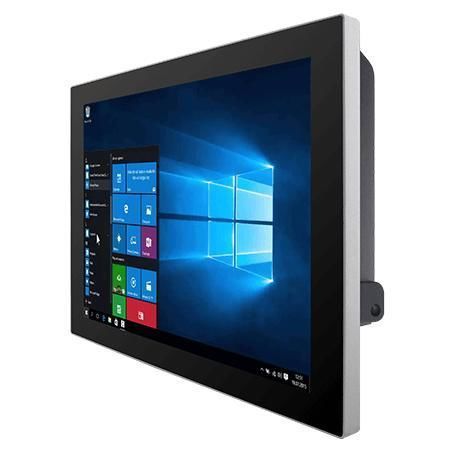

The Winmate R15IE3S-GCC3(HB) is a 15" industrial Panel PC featuring a true flat P-CAP touchscreen, front IP65 protection and a fanless thermal design. Engineered for industrial applications requiring easy cleaning, reliable operation and flexible mounting options.

Key Features

• 15" 1024 x 768 projected capacitive multi-touch (P-CAP)
• Intel® Celeron® N6211 (Elkhart Lake) — low power consumption
• Fanless cooling for silent operation and improved reliability
• Front IP65 protection against dust and water
• True flat, edge-to-edge front surface for easy cleaning
• Comprehensive I/O: 2 x 2.5G LAN, 1 x Serial (RS232/422/485), 2 x USB 3.2 Gen2 Type-A, 1 x HDMI (optional)

Product description
The true flat front reduces ingress points and simplifies maintenance in industrial environments. Front IP65 rating and aluminum enclosure provide protection suitable for manufacturing, automation and transportation applications. The fanless architecture reduces failure points and acoustic impact while supporting extended operating hours. Multiple mounting options including VESA enable wall, desktop or in-vehicle installation.

Certifications

• CE
• FCC

Specifications

• Display: 15.0" P-CAP, 1024 x 768; Brightness 300 nits (std), 1000 nits (opt); Contrast 2000:1; Active area 304.1 x 228.1 mm; Viewing angles 88/88/88/88
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (std); optional 8 GB, 16 GB
• Storage: 128 GB SSD (std); optional 256 GB / 512 GB / 1 TB / 2 TB SSD
• Ethernet: 2 x Intel® 2.5 Giga LAN
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro; Windows 10 IoT Enterprise; Linux Ubuntu 22.04
• Environmental: Operating 0 ~ 50 °C; Humidity 10%–90% non-condensing; Storage -30 ~ 70 °C; Shock MIL-STD-810G 516.6; Vibration MIL-STD-810G 514.6
• I/O: 2 x USB 3.2 Gen2 Type-A; 1 x RS232 (default) / RS422 / RS485; 1 x HDMI 2.0 (optional); 2 x Speakers
• Mechanical: 363.4 x 277.9 x 45.2 mm; VESA mount; Aluminum enclosure; Fanless cooling
• Power: 12 V DC input (std); optional 9 ~ 36 V DC
• Accessories: User manual (hardcopy), AC adapter, power cable; Buttons: Power, Reset
