PCAP touchscreen panel PC R12MG3S-GCM2
multitouch screentouch screen12.1"

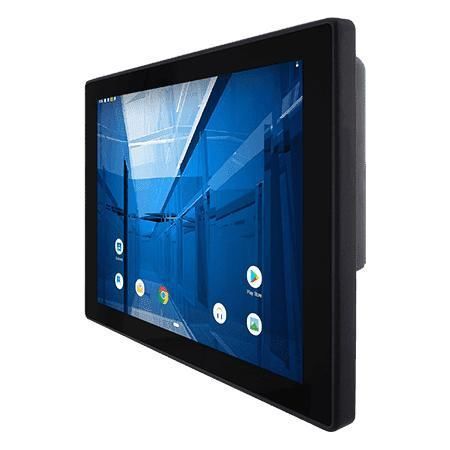

PCAP touchscreen panel PC - R12MG3S-GCM2 - Winmate, Inc. - multitouch screen / touch screen / 12.1"
PCAP touchscreen panel PC - R12MG3S-GCM2 - Winmate, Inc. - multitouch screen / touch screen / 12.1"
PCAP touchscreen panel PC - R12MG3S-GCM2 - Winmate, Inc. - multitouch screen / touch screen / 12.1" - image - 2
PCAP touchscreen panel PC - R12MG3S-GCM2 - Winmate, Inc. - multitouch screen / touch screen / 12.1" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, touch screen
Display size
12.1"
Processor
ARM® Cortex®-A55 Quad-core, ARM Cortex-A78
Resolution
1024 x 768
Operating system
Linux® Ubuntu™, Linux® Yocto, Android
Construction
fanless, aluminum frame
Mounting
VESA mounting
Applications
industrial, for the food industry
Protection level
IP65
Other characteristics
HMI, WiFi, Bluetooth, USB 2.0, Ethernet, RJ45, USB Type-C
Memory size

4 GB

Description

Key Features
  • Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • Fanless cooling (heat sinks and vapor chambers) and ultra-low power consumption
  • Front protection: IP65 (water and dust resistant)
  • True flat, edge-to-edge PCAP touch surface for easy cleaning
  • Comprehensive I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485 (default RS232), 1 x RJ45 LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)


Overview
The R12MG3S-GCM2 is a 12.1" panel PC designed for industrial HMI and embedded applications where cleanability, reliability and continuous operation are required. Its projected capacitive multi-touch display and true-flat front simplify maintenance and reduce ingress points for liquids and contaminants.

The fanless thermal design using heat sinks and vapor chambers delivers quiet operation, stable thermal management and low energy usage suited for 24/7 industrial environments.

Front IP65 rating ensures resistance to splashes and dust, enabling deployment in harsher production, food-processing or laboratory environments while preserving device integrity.

Certifications
  • CE
  • FCC


Specifications
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Display size: 12.1 inches — Resolution: 1024 x 768 — Brightness: 500 nits (default); 1000 nits (optional)
  • Contrast ratio: 1000:1 — Viewing angles: 89/89/89/89 — Active area: 245.76 x 184.32 mm
  • Memory: 4 GB LPDDR4 — Storage: Onboard 32 GB
  • OS: Android 13 (default); Linux Yocto 5.15.47 + Qt 5.15 (optional); Ubuntu 22.04 (optional)
  • WLAN / Bluetooth: optional
  • Dimensions: 296.2 x 226.7 x 45.5 mm — Cut out: 284 x 208 mm
  • Mounting: Panel mount; VESA mount — Enclosure: Aluminum
  • Operating: 0°C to 50°C — Storage: -20°C to 60°C — Humidity: 10% to 90% RH non‑condensing
  • Shock & Vibration: MIL-STD-810H (516.8 I; 514.8 I)
  • IP Rating: Front IP65
  • Power: 12V DC with terminal block (default); 9~36V optional — Adapter: 12V 50W
  • Included accessories: Quick Start Guide (hardcopy), AC Adapter 12V/50W, Power Cord, 3-pin terminal block to DC jack
