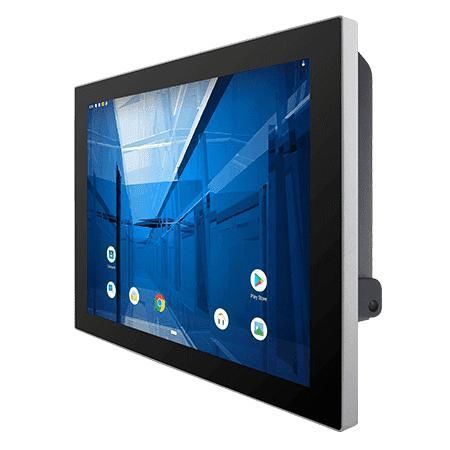

PCAP touchscreen panel PC R15IM3S-GCC3

multitouch screencapacitive touch screentouch screen

Overview
The R15IM3S-GCC3 is a 15.0" G-WIN GC‑Series PCAP panel PC designed for industrial HMI and embedded applications. It features a true flat, edge-to-edge front with front IP65 protection, fanless cooling and flexible mounting (panel/VESA) to simplify installation and maintenance in harsh environments.

Key Features

• ARM A53 Quad-Core 2.0 GHz processor
• 15.0" projected capacitive (PCAP) multi-touch display, 1024 x 768 resolution
• Front IP65 protection and true-flat edge-to-edge front for easy cleaning
• Fanless design for silent, low-power operation
• Multiple I/O: 2 x USB 2.0 Type A, 1 x Micro USB OTG, 1 x RS232/422/485, 1 x RJ45 (1 Gbps), 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Supports Android (default) and optional Linux platforms

Highlights

• Designed for industrial environments with IP65 front protection and MIL‑STD shock/vibration compliance
• True-flat front reduces contamination risk and eases regular cleaning procedures
• VESA and panel-mount options enable wall, desktop or in-vehicle installations
• Optional high-brightness panel (1000 nits) and extended power input (9–36V) for specialized deployments

Certifications

• CE
• FCC

Technical specifications

• Model: R15IM3S-GCC3
• Series: G-WIN GC-Series
• Display: Projected Capacitive Multi Touch; Size: 15.0"; Resolution: 1024 x 768; Brightness: 300 nits (std) / 1000 nits (opt); Contrast: 2000:1; View angles: 88/88/88/88; Active area: 304.1 x 228.1 mm
• Processor: ARM A53 Quad Core 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• OS: Android 11 (default, upgradable to Android 13); Optional: Linux Yocto 5.15.47 (Qt 5.15), Ubuntu Server 22.04
• Wireless: WLAN (optional); Bluetooth (optional)
• I/O: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485 (default RS232); 1 x RJ45 10/100/1000 Mbps; 1 x Micro SD slot (up to 32 GB); 1 x Micro HDMI (optional); Audio: 2 x speaker (optional)
• Power: 12V DC with terminal block (std); Optional: 9 ~ 36V; Adapter: 12V 50W
• Mechanical: Dimensions 363 x 278 x 45 mm; Cut out 349 x 263 mm; Mounting: Panel mount, VESA 100 x 100 mm; Enclosure: Aluminum; Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -20°C–60°C
• Reliability: Shock MIL‑STD‑810H Method 516.8 Proc I; Vibration MIL‑STD‑810H Method 514.8 Proc I
• Front IP rating: IP65
• Accessories: Quick Start Guide (hardcopy); AC adapter 12V/50W; Power cord; 3-pin terminal block to DC jack; Optional: power button, speakers
