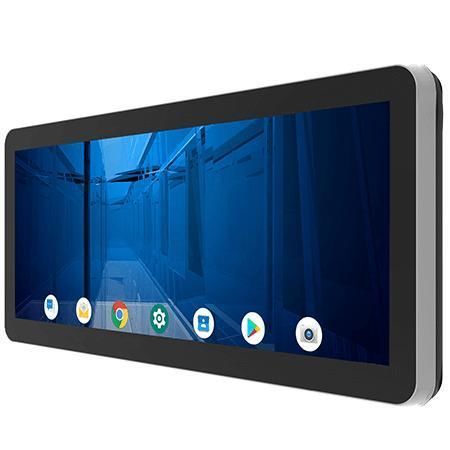

Multitouch screen panel PC W12MG3S-GCB1

PCAP capacitive touch screen12.3"1920 x 720

Key Features

• ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling system and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• I/O: 1 x USB Type-C, 2 x USB 2.0, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Overview
The Winmate G-WIN GC-Series W12MG3S-GCB1 is a 12.3-inch P-Cap panel PC for industrial HMI and embedded panel applications. It features a true flat bezel, a fanless thermal design using heat sinks and vapor chambers for reliable continuous operation, and a front IP65 rating to reduce ingress of liquids and dust.

Design & Durability
Front IP65 protects against water splashes and dust. The true-flat front simplifies hygienic cleaning and prevents liquid ingress. Mechanical options include VESA mounting and panel integration for industrial installations.

Connectivity
Interfaces include USB Type-C, USB 2.0 ports, a multi-mode serial port (RS232/422/485), Gigabit LAN (RJ45), Micro SD slot (up to 32GB) and optional Micro HDMI, WLAN and Bluetooth. Power is 12V DC via terminal block with supplied 12V/50W adapter.

Certifications

• CE
• FCC

Technical specifications

• Display: Projected Capacitive Multi Touch Screen
• Size: 12.3 inches
• Resolution: 1920 x 720
• Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 88/88/88/88
• Active Area: 292.92 × 110.22 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• OS: Android 13 (default); Linux Yocto 5.15.47 with QT 5.15 (optional); Ubuntu 22.04 (optional)
• Dimensions: 325.02 x 146.5 x 45 mm
• Mounting: VESA mount
• Cooling: Fanless (heat sinks and vapor chambers)
• USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x USB Type-C
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video: 1 x Micro HDMI (optional)
• Audio: 2 x speaker (optional)
• SD slot: Micro SD (max 32GB)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• Power: 12V DC via terminal block, adapter 12V/50W
• Accessories: Quick Start Guide (hardcopy), AC adapter 12V/50W, power cord, 3-pin terminal block to DC jack
