PCAP touchscreen panel PC R19IE3S-GCM1

multitouch screentouch screen19"

Overview

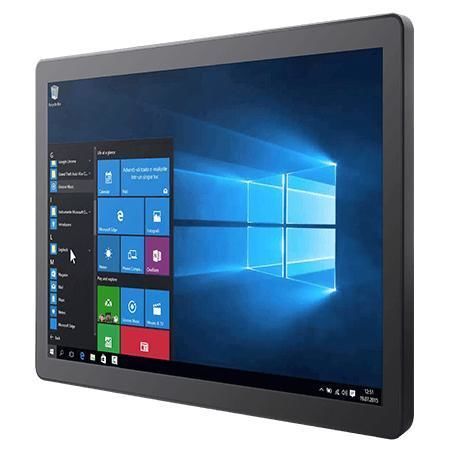

The G-WIN GC Series Panel PC R19IE3S-GCM1 (Winmate) is a 19.0‑inch true flat Panel PC with a Projected Capacitive (P-CAP) multi-touch display, front IP65 protection, fanless cooling and low power consumption. It supports Intel® Celeron® N6211 processors and flexible VESA mounting for wall, desk or in-vehicle installations, designed for demanding industrial environments.

Key Features

• 19.0‑inch 1280 x 1024 display with P-CAP touchscreen
• Intel® Celeron® Elkhart Lake N6211 processor
• Fanless cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning

Product Highlights
The true flat design minimizes dust accumulation and enables fast cleaning. Front IP65 rating provides protection in harsh industrial conditions. Fanless design ensures silent operation and improved reliability for noise-sensitive applications. VESA mounting supports a variety of installation scenarios including wall, panel and vehicle mounts.

Certifications

• CE
• FCC

Included / Optional Items

• Included (standard): 4GB memory, 128GB SSD, 12V DC input
• Optional memory: 8GB, 16GB
• Optional storage: 256GB, 512GB, 1TB, 2TB SSD
• Optional power input: 9~36V DC
• Optional video: HDMI 2.0

Note
Available operating systems and options include Windows 11 IoT Enterprise (64 bit), Windows 11 Pro (64 bit), Windows 10 IoT Enterprise (64 bit) and Linux Ubuntu 22.04.

Technical Specifications

• Display Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Active Area: 376.32 x 301.06 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB (Default); 8GB, 16GB (Optional)
• Storage: 128GB SSD (Default); 256GB, 512GB, 1TB, 2TB (Optional)
• Ethernet Controller: 2 x Intel® Ethernet Controller (2.5 Giga LAN)
• Security: TPM 2.0
• Operating System (options): Windows 11 IoT Enterprise (64 bit), Windows 11 Pro (64 bit), Windows 10 IoT Enterprise (64 bit), Linux Ubuntu 22.04
• Operating Humidity: 10% to 90% (Non-Condensing)
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -30 °C ~ 70 °C
• Shock: MIL-STD-810G Method 516.6
• Vibration: MIL-STD-810G Method 514.6
• IP Rating: Front IP65
• USB Port: 2 x USB 3.2 Gen2 (Type-A)
• Serial Port: 1 x RS232 (Default) / 422 / 485
• LAN: 2 x 2.5 Giga LAN RJ45 Connector
• Video: 1 x HDMI 2.0 (Optional)
• Dimension: 445 x 370 x 51 mm
• Mounting: VESA mount
• Enclosure: Metal housing with plastic bezel
• Cooling System: Fanless design
• Buttons: 1 x Power Button, 1 x Reset Button
• Power Rating: 12V DC input (Default); 9~36V DC input (Optional)
• Accessory: User manual (hardcopy), AC adapter, power cable
