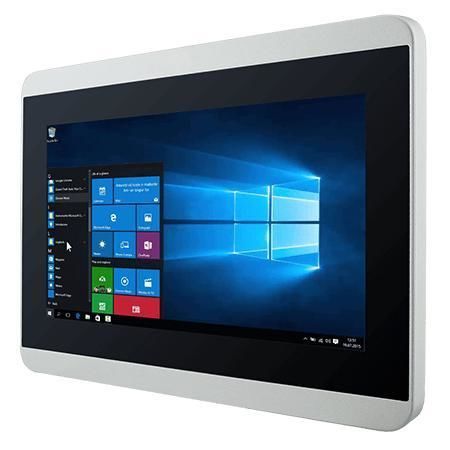

PCAP touchscreen panel PC W07IE3S-GCT1

multitouch screentouch screen7"

Overview
The Winmate G-WIN GC Series Panel PC W07IE3S-GCT1 is a 7-inch industrial panel PC designed for HMI and embedded applications requiring easy cleaning, IP65 front protection and low power consumption. It features a True Flat P-CAP touchscreen, fanless thermal design and flexible mounting options for wall, desk or vehicle installations.

Key Features

• 7" 1024 x 600 display with Projected Capacitive (P‑CAP) multi-touch
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• Fanless cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front for easy cleaning
• I/O: 2 x 2.5 Giga LAN, 1 x COM (RS232 default / RS422/485), 2 x USB 3.2 Gen2 Type-A, 1 x HDMI (optional)

Certifications

• CE
• FCC

Product Highlights / Design

• True Flat front and hygienic edge-to-edge glass reduce dust accumulation and simplify cleaning
• Front IP65 rating suitable for industrial environments and light washdown
• Fanless architecture enables silent 24/7 operation and improved reliability
• VESA and panel mounting support for flexible installation scenarios

I/O & Connectivity

• 2 x Intel® 2.5 Giga LAN (RJ45)
• 1 x Serial: RS232 (default) / RS422 / RS485
• 2 x USB 3.2 Gen2 Type-A
• 1 x HDMI 2.0 (optional)

Software & Security

• TPM 2.0
• OS options (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04

Accessories

• User manual (hardcopy)
• AC adapter and power cable

Environmental & Ruggedness

• Operating humidity: 10%–90% (non-condensing)
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -30 ~ 70 °C
• Shock & Vibration: MIL‑STD‑810G Methods 516.6 / 514.6
• Front IP rating: IP65

Technical specifications

• Display: 7.0 inches, 1024 x 600, 320 nits, 1000:1 contrast, viewing angles 75/75/75/70, active area 153.6 x 90 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); 8 GB / 16 GB optional
• Storage: 128 GB SSD (default); 256 / 512 GB / 1 TB / 2 TB optional
• Ethernet controller: 2 x Intel® 2.5 Giga LAN
• Security: TPM 2.0
• I/O: 2 x USB 3.2 Gen2 Type-A; 1 x RS232/422/485; 2 x 2.5 Giga LAN; 1 x HDMI 2.0 (optional)
• Dimensions: 189.4 x 145.4 x 39.8 mm; Mounting: VESA
• Enclosure: Metal housing with aluminum bezel; Cooling: Fanless; Power: 12V DC input
• Buttons: 1 x Power, 1 x Reset
• Certifications: CE, FCC
