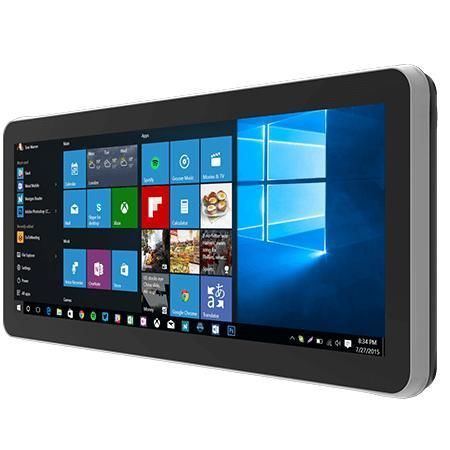

Multitouch screen panel PC W12IE3S-GCB1

PCAP capacitive touch screen1000 nits12.3"

Product
12.3-inch Intel® Celeron® N6211 GC-Series front IP65 PCAP Panel PC for industrial HMI and embedded applications.

Key Features

• 12.3-inch 1920 x 720 panel with projected capacitive multi-touch
• Intel® Celeron® Elkhart Lake N6211 processor for low power consumption
• Fanless cooling for silent operation and reduced mechanical failure risk
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning

Certifications

• Front IP65
• FCC
• CE

Overview — Industrial features

• Fanless design minimizes dust ingress and mechanical wear in harsh environments
• Front IP65 rating ensures protection against splashes and particles for washdown-capable areas
• Edge-to-edge true-flat front simplifies cleaning and supports hygienic installations
• Energy-efficient platform suitable for embedded and continuous-operation applications

Software / Operating System options

• Windows 11 IoT Enterprise (64 bit) — optional
• Windows 11 Pro 64 bit — optional
• Windows 10 IoT Enterprise (64 bit) — optional
• Linux Ubuntu 22.04 — optional

Accessories

• Quick Start Guide (Hardcopy)
• AC Adapter
• Power Cable

Technical specifications

• Display — Size: 12.3 inches
• Display — Resolution: 1920 x 720
• Display — Type: Projected Capacitive Multi Touch (P-Cap)
• Display — Panel Brightness: 1000 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 88, 88, 88, 88
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (Default); 8 GB (Optional); 16 GB (Optional)
• Storage: 128 GB SSD (Default); optional 256 GB, 512 GB, 1 TB, 2 TB
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ45)
• Security: TPM 2.0
• IO Ports — USB: 1 x USB 2.0; 1 x USB 3.0
• IO Ports — Serial: 1 x RS232 (Default) / 422 / 485
• IO Ports — LAN: 2 x RJ45
• IO Ports — Video: 1 x HDMI (Optional)
• IO Ports — Audio: 1 x Speaker
• Power — Rating: 12V DC in
• Mechanical — Dimension: 325.02 x 146.5 x 44.9 mm
• Mechanical — Mounting: VESA mount; Panel mount
• Mechanical — Enclosure: Plastic bezel & aluminum back cover
• Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -20°C to 60°C
• Environment — Shock: MIL-STD-810G Method 516.6 Procedure I
• Environment — Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: Front IP65
• Certification: CE, FCC
• Control — Buttons: 1 x Power Button; 1 x Reset Button
