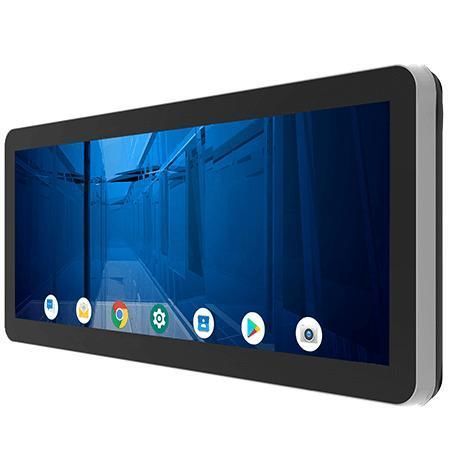

Multitouch screen panel PC W12IM3S-GCB1

capacitive touch screenPCAP capacitive touch screen1000 nits

Overview
The W12IM3S-GCB1 is a 12.3-inch PCAP panel PC designed for industrial HMI, vehicle and embedded applications. It combines an ARM A53 quad-core processor with a high-brightness, true-flat edge-to-edge display and front IP65 protection. The unit supports Android (default) or optional Linux distributions and features a fanless design for reliable continuous operation.

Key features

• 12.3" 1920 x 720 projected capacitive multi-touch display (1000 nits)
• ARM A53 Quad Core 2.0 GHz processor
• Front IP65 protection against water and dust
• True-flat edge-to-edge front surface, easy to clean
• Support for Android (default) or optional Linux (Yocto, Ubuntu Server)
• Fanless design; VESA mounting

Certifications

• Front IP65
• MIL-STD-810H (shock & vibration relevant methods)
• CE
• FCC

Product details
The panel PC is available with configurable I/O and optional wireless and multimedia features (WLAN/BT, Micro HDMI, speakers). It ships with typical accessories including AC adapter (12 V / 50 W), power cord, quick start guide and a 3-pin terminal block to DC jack. The device offers a terminal-block power input (12 V DC) and an optional power button.

Technical specifications

• Display: Projected Capacitive Multi Touch Screen, 12.3" (1920 x 720), 1000 nits, 1000:1
• Active area: 292.92 × 110.22 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating systems: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.15.47 + QT 5.15; optional Ubuntu Server 22.04
• Wireless: WLAN (optional), Bluetooth (optional)
• Dimensions: 325.02 × 146.5 × 45 mm; Mounting: VESA
• Cooling: Fanless design
• USB: 2 × USB 2.0 Type-A; 1 × Micro USB 2.0 OTG
• Serial: 1 × RS232/422/485 (default RS232)
• LAN: 1 × RJ45 10/100/1000 Mbps
• Video: 1 × Micro HDMI output (optional)
• Audio: 2 × Speaker (optional)
• SD: 1 × Micro SD slot (max 32 GB)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C
• Shock & vibration: MIL-STD-810H Methods 516.8 / 514.8
• Power: 12 V DC via terminal block; AC adapter 12 V 50 W included
• Accessories: Quick Start Guide (hardcopy), AC adapter 12 V/50 W, power cord, 3-pin terminal block to DC jack
