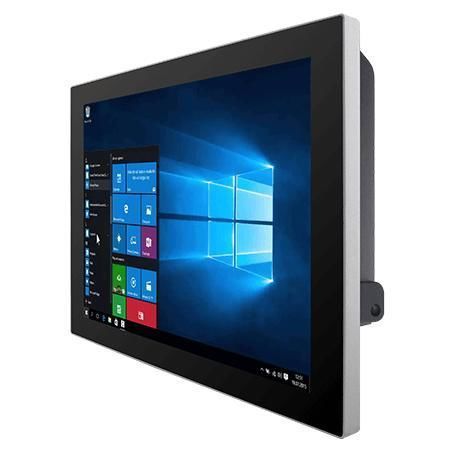

PCAP touchscreen panel PC R15IP3S-GCC3

multitouch screencapacitive touch screentouch screen

Overview
The Winmate R15IP3S-GCC3 is a 15" front IP65 PCAP panel PC designed for industrial and commercial installations requiring a flat, easy-to-clean front surface, fanless operation and robust I/O. Suitable for room booking, access control and information terminals.

Key Features

• 15" 1024 x 768 projected capacitive (PCAP) multi-touch display, 300 nits
• Intel® Pentium® N4200 (Apollo Lake) processor
• Fanless design with passive cooling fins
• Dual Gigabit Ethernet (2 x Intel® controllers)
• Front panel rated IP65 for dust and splash protection
• VESA and panel-mount options for wall, desk or vehicle installation

Certifications

• CE
• FCC

Display

• Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast Ratio: 2000:1
• Active Area: 304.1 x 228.1 mm

System Specification

• Processor: Intel Pentium N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB (default); 8 GB (optional)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu 20.04 (optional)
• WLAN / Bluetooth: optional

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock / Vibration: MIL-STD-810G compliant
• IP rating: Front IP65

IO Ports

• USB: 2 x USB 3.0
• Serial: 1 x RS232 (default) / 422 / 485
• LAN: 2 x RJ45 (10/100/1000 Mbps)
• Audio: 2 x speaker

Mechanical

• Dimensions (W x H x D): 363.40 x 277.86 x 44.50 mm
• Mounting: VESA mount (default); panel mount (optional)
• Enclosure: metal
• Cooling: fanless

Accessory

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W, power cord
• 3-pin terminal block to DC jack

Control

• Buttons: 1 x power, 1 x reset

Power

• Power input: 12V DC via terminal block

Technical specifications

• Model: R15IP3S-GCC3
• Brand: Winmate
• Display size / Resolution: 15.0 inches / 1024 x 768
• Processor: Intel Pentium N4200
• Memory: 4GB standard, 8GB optional
• Storage options: 128GB–1TB SSD
• I/O summary: 2 x USB 3.0, 1 x RS232/422/485, 2 x RJ45, 2 x speaker
• Front protection: IP65
• Operating temp: 0°C to 50°C
• Dimensions: 363.40 x 277.86 x 44.50 mm
