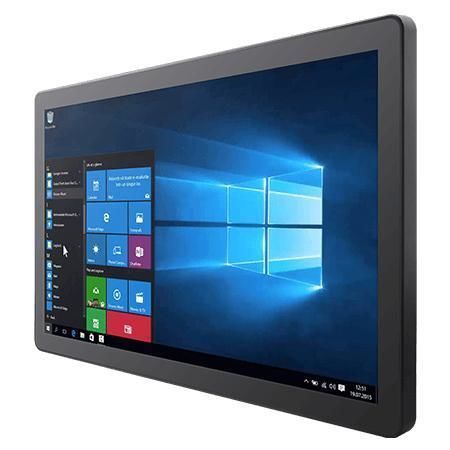

PCAP touchscreen panel PC W22IE3S-GCA3

multitouch screentouch screen21.5"

Overview
The Winmate G-WIN GC Series W22IE3S-GCA3 is a 21.5" front IP65 PCAP Panel PC designed for HMI and industrial automation. It features a true flat edge-to-edge front for easy cleaning, a fanless thermal design for silent, reliable operation, and flexible mounting options for wall, desktop or vehicle installation.

Key Features

• 21.5” 1920 x 1080 with projected capacitive (P-CAP) touchscreen
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• Fanless cooling and ultra low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning

Design & Durability
The unit has a metal housing with plastic bezel, meets MIL-STD-810G methods for shock and vibration, and offers front IP65 protection. VESA mounting is standard; panel mounting is available as an option for embedded applications.

Operating Environment
Suitable for typical industrial ambient conditions: operating humidity 10%–90% non-condensing, operating temperature 0 ~ 50°C, storage temperature -30 ~ 70°C.

Certifications

• CE
• FCC

Accessories

• User Manual (Hardcopy)
• AC Adapter
• Power Cable

Technical specifications

• Display: 21.5 inches, 1920 x 1080, 250 nits, 3000:1 contrast, active area 476.64 x 268.11 mm
• Touch: Projected Capacitive Multi-Touch
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB default; optional 8GB / 16GB
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB
• Ethernet: 2 x Intel® Ethernet Controller, 2 x 2.5 Giga LAN RJ45
• Ports: 2 x USB3.2 Gen2 (Type-A), 1 x RS232 (default) / RS422 / RS485, 1 x HDMI 2.0 (optional)
• Security: TPM 2.0
• Mounting: VESA mount (default); panel mount (optional)
• Dimensions: 530.2 x 321.7 x 54.9 mm
• Power: 12V DC input (default); 9 ~ 36V DC input (optional)
