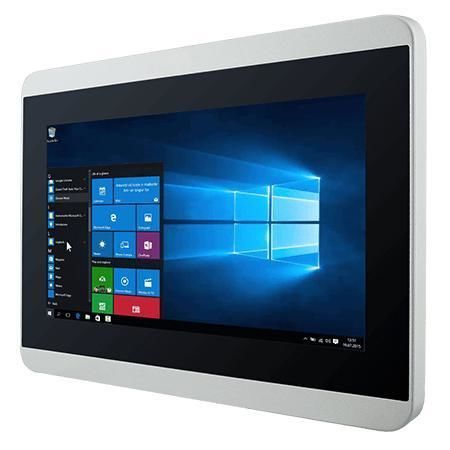

PCAP touchscreen panel PC W07IE3S-GCO1HB

multitouch screentouch screen1000 nits

Overview
The Winmate W07IE3S-GCO1HB is a 7-inch projected-capacitive (P-CAP) panel PC from the G-WIN GC series designed for industrial HMI, control and embedded applications. It features a true-flat front with front IP65 protection, fanless thermal design, a low-power Intel® Celeron® N6211 processor and flexible I/O for industrial connectivity.

Key Features

• 7" 1024 x 600 P-CAP touchscreen, 1000 nits brightness, 800:1 contrast
• Intel® Celeron® N6211 (low-power Elkhart Lake)
• Fanless design for silent, reliable operation
• Front IP65 protection against water and dust
• True-flat edge-to-edge front for easy cleaning
• Extensive I/O: 2 x 2.5G LAN, 1 x COM (RS232 default / RS422/485), 2 x USB 3.2 Gen2 Type-A, 1 x HDMI (optional), audio

Design & Durability
The true-flat front minimizes dust accumulation and allows quick cleaning in industrial or hygienic environments. Front IP65 rating ensures resistance to splashes and dust. The fanless thermal design reduces moving parts for higher reliability and longer service life.

Mounting & Cooling
Supports VESA and panel mounting for wall, desk or vehicle installation. Passive cooling enables operation in noise-sensitive or sealed enclosures while maintaining thermal stability within the specified temperature range.

Certifications

• CE
• FCC

Accessories

• User manual (hardcopy)
• AC adapter
• Power cable

Technical specifications

• Display: Projected Capacitive Multi Touch; Size: 7.0 inches; Resolution: 1024 x 600; Brightness: 1000 nits; Contrast: 800:1; View angles: 85/85/85/85; Active area: 152.2144 x 85.92 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; optional 8 GB, 16 GB
• Storage: 128 GB SSD default; optional 256 GB, 512 GB, 1 TB, 2 TB
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• Environment: Operating humidity 10%–90% (non-condensing); Operating temperature 0 ~ 50°C; Storage temperature -30 ~ 70°C; Shock: MIL-STD-810G Method 516.6; Vibration: MIL-STD-810G Method 514.6; Front IP65
• I/O Ports: 2 x USB 3.2 Gen2 Type-A; 1 x Serial port (RS232 default / RS422/485); 2 x 2.5 Giga LAN RJ45; 1 x HDMI 2.0 (optional); 1 x Speaker
• Mechanical: Dimensions 189.4 x 145.4 x 39.8 mm; Mounting: VESA mount; Enclosure: Metal housing with aluminum bezel; Cooling: Fanless
• Power: 12V DC input
• Controls: 1 x Power button; 1 x Reset button
