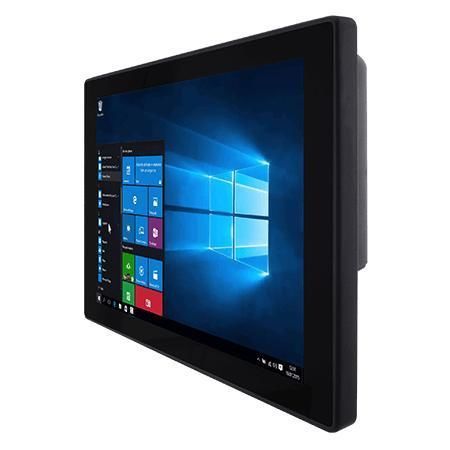

PCAP touchscreen panel PC R12IE3S-GCM2(HB)

multitouch screentouch screen12.1"

Overview
The Winmate G-WIN GC Series Panel PC R12IE3S-GCM2(HB) is a 12.1-inch industrial front IP65 panel PC with a True Flat projected capacitive (P-CAP) multi-touch display, fanless cooling and a compact aluminum enclosure. It is engineered for industrial HMI applications requiring easy cleaning, front protection against water and dust, low power consumption and flexible mounting options.

Key Features

• 12.1-inch 1024 x 768 P-CAP touchscreen
• Intel® Celeron® N6211 (Elkhart Lake) processor for low power operation
• Fanless thermal design for silent, reliable operation
• Front IP65 protection against water and dust
• True Flat edge-to-edge front for easy cleaning
• Rich I/O: 2 x 2.5GbE LAN, 1 x COM (RS232/422/485), 2 x USB 3.2 Gen2 Type-A, 1 x HDMI (optional)

Certifications

• CE
• FCC

Presentation / Highlights
True Flat design reduces dirt accumulation and simplifies cleaning for regulated or hygienic environments.

Front IP65 rating provides protection in dusty and wet industrial settings.

Fanless cooling improves reliability and enables deployment in noise-sensitive areas.

Multiple mounting options (VESA, panel, wall, desk, in-vehicle) support diverse installation scenarios.

Display
Touch / Glass: Projected Capacitive Multi Touch Screen
Size: 12.1-inch
Resolution: 1024 x 768
Panel Brightness: 500 nits (default); 1000 nits (optional)
Contrast Ratio: 1000:1
View Angles: 89/89/89/89
Active Area: 245.76 x 184.32 mm

System Specification
Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
Memory: 4GB (default); 8GB / 16GB optional
Storage: 128GB SSD (default); 256GB / 512GB / 1TB / 2TB optional
Ethernet controller: 2 x Intel® Ethernet Controller (2.5GbE)
Security: TPM 2.0
Operating System: Windows 11 IoT Enterprise 64-bit / Windows 11 Pro 64-bit / Windows 10 IoT Enterprise 64-bit / Linux Ubuntu 22.04 (optional)

Environment
Operating Humidity: 10% to 90% (non-condensing)
Operating Temperature: 0 to 50°C
Storage Temperature: -30 to 70°C
Shock: MIL-STD-810G Method 516.6
Vibration: MIL-STD-810G Method 514.6
IP rating: Front IP65

IO Ports
USB: 2 x USB 3.2 Gen2 Type-A
Serial: 1 x RS232 (default) / RS422 / RS485
LAN: 2 x 2.5GbE RJ45
Video: 1 x HDMI 2.0 (optional)
Audio: 2 x speakers

Mechanical
Dimensions: 296.2 x 226.7 x 45.5 mm
Mounting: VESA mount; Panel mount
Enclosure: Aluminum
Cooling: Fanless design

Accessory
User manual (hardcopy); AC adapter; Power cable

Power
Power Rating: 12V DC input (default); 9–36V DC input (optional)

Control
Buttons: 1 x Power; 1 x Reset

Technical specifications

• Model: R12IE3S-GCM2(HB)
• Brand: Winmate
• Display: 12.1-inch P-CAP, 1024x768, 500 nits default, 1000 nits optional
• Processor: Intel® Celeron® N6211
• Memory options: 4GB / 8GB / 16GB
• Storage options: 128GB / 256GB / 512GB / 1TB / 2TB SSD
• Front protection: IP65
• Durability: MIL-STD-810G (shock & vibration)
• I/O: 2 x USB3.2 Gen2, 1 x COM (RS232/422/485), 2 x 2.5GbE LAN, 1 x HDMI (opt)
• Security: TPM 2.0
• Mounting: VESA + panel mount
• Enclosure: Aluminum; fanless cooling
• Operating conditions: 0–50°C; 10%–90% non-condensing humidity
• Certifications: CE, FCC
