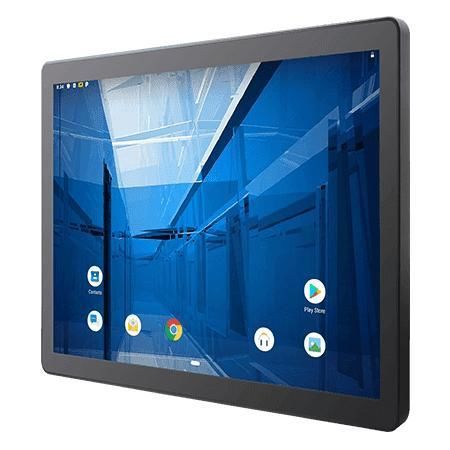

Panel PC with touch screen R19MG3S-GCM1

PCAP touchscreenmultitouch screenmulti-touch screen

Overview
The R19MG3S-GCM1 is a 19" G-WIN GC-Series front IP65 projected-capacitive (P-Cap) Panel PC designed for industrial HMI and edge applications. It integrates an ARM big.LITTLE CPU (2 x A78 + 4 x A55), a fanless thermal design, and a true flat edge-to-edge front surface for ease of cleaning and ingress resistance. Multiple OS options, onboard memory/storage and extensive I/O make it suitable for control, visualization and kiosk use.

Key Features

• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• 19.0" projected capacitive multi-touch display, resolution 1280 x 1024
• Front IP65 protection against water and dust
• Fanless cooling with heat sinks and vapor chamber
• Edge-to-edge true flat front for simplified cleaning
• Rich I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45 (Gigabit), 1 x Micro SD, 1 x Micro HDMI (optional)
• OS: Android 13 (default); optional Linux Yocto or Ubuntu

Certifications

• CE
• FCC

Product Highlights

• True flat, edge-to-edge front reduces ingress points and simplifies maintenance in industrial or food-processing environments
• Fanless design ensures silent operation and increased reliability for continuous use
• Front IP65 increases uptime in dusty or splash-prone locations
• Comprehensive ports support peripherals, serial devices and network integration

Technical Specifications

• Display: 19.0 inches; Touch/Glass: Projected Capacitive Multi Touch; Resolution: 1280 x 1024; Brightness: 250 nits; Contrast: 1000:1; Active Area: 376.32 x 301.06 mm
• System: CPU: ARM 2 x A78 + 4 x A55 @2.0GHz; Memory: 4 GB LPDDR4; Storage: Onboard 32 GB
• OS Options: Android 13 (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Ubuntu 22.04 (Optional)
• Mechanical: Dimensions: 445 x 370 x 51 mm; Cut-out: 388 x 280 mm; Mounting: Panel mount / VESA; Enclosure: Metal housing with plastic bezel
• Environment: Operating Humidity 10%–90% RH non-condensing; Operating Temp 0°C to 50°C; Storage Temp -20°C to 60°C; Shock/Vibration: MIL-STD-810H tested; Front IP65
• Power & Accessories: Power: 12V DC terminal block (default), 9–36V optional; Accessories: Quick Start Guide, AC Adapter 12V/50W, Power Cord, 3-pin terminal block to DC jack
• I/O: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG); 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000; 1 x Micro SD slot; 1 x Micro HDMI (optional); Audio: 2 x speaker (optional)
• Certifications: CE, FCC
