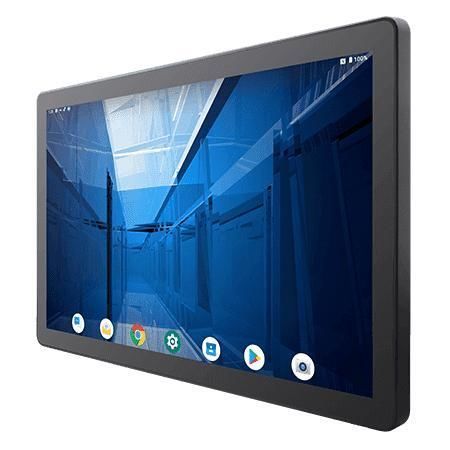

PCAP touchscreen panel PC W22IM3S-GCA3

multitouch screentouch screen21.5"

Key Features

• ARM A53 Quad Core 2.0GHz CPU
• Fanless cooling system and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Multiple I/O: 1 x Micro USB, 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Supports Android (default) and optional Linux platforms

Signature True Flat Surface
The W22IM3S-GCA3 features a true flat, edge-to-edge front that simplifies maintenance and prevents liquid ingress at the bezel. The design reduces dust accumulation on edges and improves hygiene in industrial and regulated environments.

PCAP Multi-Touch Interface
Projected capacitive multi-touch provides accurate, multi-finger input and supports common industrial use cases, including glove operation and fast response for HMI applications.

Operating System and Integration
Default Android platform (Android 11, upgradable to Android 13) with optional Linux images (Yocto, Ubuntu Server) for embedded integration. Software customization and image provisioning are supported for project deployments.

Mounting and Deployment
Offers panel-mount and VESA mounting options for wall, desk or in-vehicle installations. I/O placement and access are designed for varied industrial scenarios.

Water and Dust Protection
Front IP65 rating provides protection from water jets and dust ingress on the display side, suitable for harsh production floors and field equipment.

Technical specifications

• Display: 21.5 inches, Resolution 1920 x 1080, Panel Brightness 250 nits, Contrast 3000:1, View Angles 89/89/89/89, Active Area 476.64 x 268.11 mm
• Processor: ARM A53 Quad Core 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 with Qt 5.15 (optional); Ubuntu Server 22.04 (optional)
• WLAN / Bluetooth: Optional
• Dimensions: 530 x 322 x 55 mm; Cut-out: 457 x 250 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing with plastic bezel; Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C to 50°C; Storage temp -20°C to 60°C; Shock MIL-STD-810H Method 516.8 Procedure I; Vibration MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• Certifications: CE, FCC
• I/O: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI (optional); 1 x Micro SD slot (max 32 GB); Audio: 2 x speaker (optional)
• Power: 12V DC with terminal block (default); 9–36V optional; Adapter references: AC adapter 12V/50W (accessory), 12V/84W listed in some specs
• Accessories: Quick Start Guide (hardcopy); AC adapter 12V/50W; Power cord; 3-pin terminal block to DC jack
• Control: 1 x Power Button (optional)
