PCAP touchscreen panel PC R10MG3S-GCT2
multitouch screen1000 nits10.4"

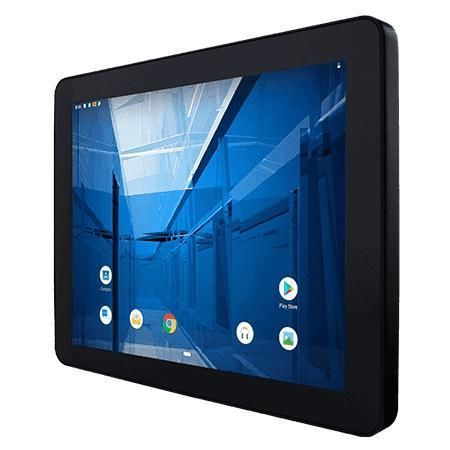

PCAP touchscreen panel PC - R10MG3S-GCT2 - Winmate, Inc. - multitouch screen / 1000 nits / 10.4"
PCAP touchscreen panel PC - R10MG3S-GCT2 - Winmate, Inc. - multitouch screen / 1000 nits / 10.4"
PCAP touchscreen panel PC - R10MG3S-GCT2 - Winmate, Inc. - multitouch screen / 1000 nits / 10.4" - image - 2
PCAP touchscreen panel PC - R10MG3S-GCT2 - Winmate, Inc. - multitouch screen / 1000 nits / 10.4" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, 1000 nits
Display size
10.4"
Processor
ARM® Cortex®-A55 Quad-core, ARM Cortex-A78
Resolution
1024 x 768
Operating system
Linux® Ubuntu™, Linux® Yocto, Android
Construction
fanless, aluminum frame
Mounting
VESA mounting
Applications
industrial, for the food industry, for clean rooms, for self-service information kiosk
Protection level
IP65
Other characteristics
HMI, WiFi, Bluetooth, Ethernet, USB Type-C, energy-saving
Memory size

4 GB

Description

Overview
The R10MG3S-GCT2 is a 10.4-inch industrial Panel PC with a projected capacitive (P‑Cap) multi-touch front, front-facing IP65 protection and fanless cooling. Designed for continuous HMI and industrial use where easy cleaning, low noise and reliable connectivity are required.

Key features
  • Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • 10.4" P‑Cap touch display, 1024 x 768, 1000 nits
  • Front IP65 protection (water and dust resistant)
  • Fanless thermal design with heat sinks and vapor chambers
  • I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485 (default RS232), 1 x RJ45 (Gigabit), 1 x Micro SD, 1 x Micro HDMI (optional)

Design & Cooling
True flat edge-to-edge front glass for hygienic surfaces and simplified cleaning. Fanless cooling uses heat sinks and vapor chambers to ensure quiet, energy-efficient operation suitable for continuous industrial environments.

Front protection & suitability
Front IP65 rating protects against splashes and dust at the front panel, enabling installation in harsh industrial and hygienic environments (food processing, clean areas, outdoor-facing operator panels).

Certifications
  • CE
  • FCC

I/O & Expansion
Comprehensive built-in interfaces for industrial integration: USB Type-C (OTG), USB 2.0 Type A ports, configurable serial port (RS232/422/485), Gigabit LAN, Micro SD slot and optional Micro HDMI for external displays.

Software & Connectivity
Default OS: Android 13. Optional: Linux Yocto 5.15.47 with Qt 5.15 or Linux Ubuntu 22.04. Optional WLAN and Bluetooth for wireless connectivity.

Accessories
Standard package: Quick Start Guide (hardcopy), AC adapter 12V/50W, power cord and 3-pin terminal block to DC jack.

Usage scenarios
Intended for HMI, industrial panels, kiosks and automation systems that require front IP protection, easy cleaning and continuous reliable operation (factory automation, food processing lines, transportation operator panels).

Specifications
  • Model: R10MG3S-GCT2
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Display Size: 10.4 inches
  • Resolution: 1024 x 768
  • Panel Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • View Angles: 88/88/88/88
  • Active Area: 210.4 x 157.8 mm
  • Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • Memory: 4 GB LPDDR4 (onboard)
  • Storage: Onboard 32 GB
  • OS: Android 13 (Default); Linux Yocto 5.15.47 with Qt 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
  • WLAN / Bluetooth: Optional
  • USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
  • Serial: 1 x RS232/422/485 (Default RS232)
  • LAN: 1 x 10/100/1000 Mbps
  • Video: 1 x Micro HDMI (Optional)
  • SD Card: 1 x Micro SD slot
  • Dimensions: 252.41 x 197.8 x 36.4 mm
  • Cut out: 230 x 178 mm
  • Mounting: Panel mount; VESA mount
  • Enclosure: Aluminum
  • Cooling System: Fanless (heat sinks + vapor chambers)
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Shock & Vibration: MIL-STD-810H compliant
  • Front IP rating: IP65
  • Certifications: CE, FCC
  • Power: 12V DC with Terminal Block (Default); 9~36V optional
  • Adapter: 12V 50W
  • Included Accessories: Quick Start Guide (hardcopy), AC Adapter 12V/50W, Power Cord, 3-pin Terminal Block to DC Jack
