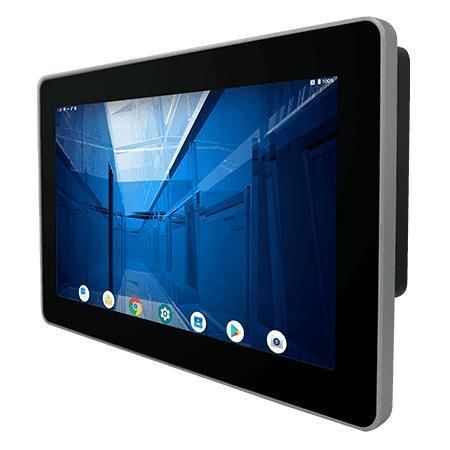

PCAP touchscreen panel PC W10MG3S-GCH2

multitouch screen10.1"ARM® Cortex®-A55 Quad-core

Key Features

• ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling system (heat sink + vapor chamber) and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Plenty of I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Overview
Simplifying Cleaning with True Flat Design
The W10MG3S-GCH2 (G-WIN GC series) features a completely flat, edge-to-edge front bezel that reduces crevices where dust or liquids can accumulate, simplifying maintenance and cleaning for industrial and hygienic environments.

Quiet Cooling with Low Energy Consumption
Designed with fanless thermal solutions (heat sinks and vapor chamber), the unit delivers quiet operation and improved energy efficiency, suitable for noise-sensitive industrial installations.

Complete Water Resistance
Front IP65 rating protects against splashes and dust, enabling deployment in wet or harsh environments while preserving functionality and lifespan.

All-Inclusive I/O Ports
Multiple interfaces support industrial peripherals and network connectivity, including Gigabit LAN, serial port (RS232/422/485), USB Type-C OTG and microSD. Optional WLAN, Bluetooth and Micro HDMI expand connectivity.

Applications and Use
Suitable for HMI, industrial automation, food & hygienic environments, transportation and other rugged or semi-rugged installations requiring front protection, easy cleaning and low-power operation.

Certifications

• CE
• FCC

Technical specifications

• Display: Size 10.1 inches; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution 1280 x 800; Brightness 350 nits; Contrast 800:1; View angles 85/85/85/85; Active area 216.96 x 135.6 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (Default); Linux Yocto 5.15.47 with QT 5.15 (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN / Bluetooth: Support (Optional)
• Dimensions: 262 x 172 x 40.2 mm; Cut out: 249 x 158 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Plastic front bezel with metal back cover
• Cooling System: Fanless (heat sink + vapor chamber)
• Operating Humidity: 10% to 90% RH, non‑condensing
• Operating Temperature: 0°C to 50°C; Storage Temperature: -20°C to 60°C
• Shock & Vibration: MIL-STD-810H (Shock Method 516.8 Procedure I; Vibration Method 514.8 Procedure I)
• IP Rating: Front IP65
• USB Ports: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps
• Video: 1 x Micro HDMI (Optional)
• Audio: 1 x Speaker (Optional)
• SD Card Slot: 1 x Micro SD
• Power: 12V DC with terminal block (Default); 9~36V optional; Adapter 12V 50W
• Accessory (included): Quick Start Guide (Hardcopy); AC Adapter 12V/50W; Power Cord; 3‑pin terminal block to DC jack
• Button: 1 x Power Button (Optional)
