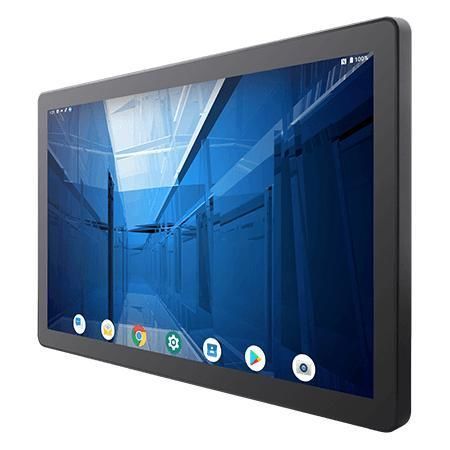

PCAP touchscreen panel PC W24IM3S-GCA2

multitouch screenmulti-touch screentouch screen

Key features

• ARM A53 Quad Core 2.0 GHz processor
• Fanless cooling and ultra-low power consumption
• Front protection IP65 against water and dust
• True flat, edge-to-edge front panel for easy cleaning
• Projected capacitive (PCAP) multi-touch display
• Multiple I/O: 2 x USB 2.0, 1 x Micro USB OTG, 1 x RS232/422/485, 1 x Gigabit LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Supports Android (default) and optional Linux distributions

Overview
The W24IM3S-GCA2 is a 24-inch industrial Panel PC designed for HMI and embedded applications. The truly flat front and edge-to-edge bezel reduce ingress points and simplify maintenance in production and field environments.

Touch and OS support
The PCAP projected capacitive multi-touch panel delivers responsive and accurate touch operation suitable for operator interfaces. The system ships with Android 11 (upgradeable to Android 13) and offers optional Linux Yocto or Ubuntu Server for integration and customization.

Mounting and I/O
Supports panel and VESA mounting for wall, desk or vehicle installation. Accessible I/O enables straightforward integration: USB, serial (RS232/422/485), Gigabit LAN, Micro HDMI (optional), audio and Micro SD. Optional WLAN and Bluetooth modules are available.

Technical specifications

• Display: 24.0 inches, 1920 x 1080, 250 nits, 3000:1 contrast
• Processor: ARM A53 Quad Core 2.0 GHz
• Memory / Storage: 4 GB LPDDR4 / 32 GB eMMC onboard
• Operating system: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.15.47 (QT 5.15) or Ubuntu Server 22.04
• Dimensions / Cut-out: 588 x 358 x 55 mm / 388 x 280 mm
• Mounting / Enclosure: Panel mount / VESA; metal housing with plastic bezel
• Cooling: Fanless design
• Environment: Operating 0°C to 50°C, 10%–90% RH non-condensing; Storage -20°C to 60°C; Front IP65
• Certifications: CE, FCC
• Power: 12V DC (terminal block default), optional 9–36V; adapter options listed
