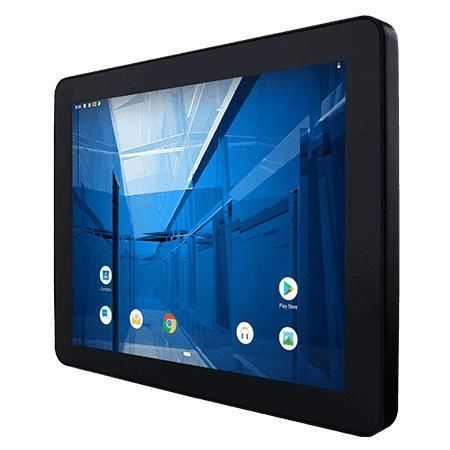

PCAP touchscreen panel PC R10IM3S-GCT2

multitouch screen10.4"Arm® Cortex®-A53 Quad-core

Overview
The R10IM3S-GCT2 is a 10.4" G-WIN GC-Series front IP65 projected-capacitive (PCAP) panel PC powered by an ARM A53 Quad Core 2.0GHz CPU. It features a fanless design, ultra-low power consumption and a true flat, edge-to-edge front surface suitable for industrial HMI and embedded applications.

Key Features

• ARM A53 Quad Core 2.0GHz CPU
• Fanless cooling and ultra-low power consumption
• Front IP65 protection (water and dust resistant)
• True flat, edge-to-edge front glass for easy cleaning
• Projected Capacitive (PCAP) multi-touch
• Rich I/O: Micro USB, 2 x USB 2.0, RS232/422/485, RJ45, Micro SD, Micro HDMI (optional)
• Supports Android (default) or Linux (optional)

Product Highlights
The unit's true-flat front minimizes dirt accumulation and simplifies cleaning procedures in industrial settings. PCAP multi-touch enables responsive onscreen control for operator interfaces. The fanless aluminum enclosure improves reliability in dust-prone environments while multiple mounting options (panel and VESA) facilitate integration into machines, kiosks and control cabinets.

Certifications

• CE
• FCC

Technical specifications

• Display - Touch/Glass: Projected Capacitive Multi Touch Screen
• Display Size: 10.4 inches
• Resolution: 1024 x 768
• Panel Brightness: 350 nits (default); 1000 nits (optional)
• Contrast Ratio: 1000:1
• View Angles: 88,88,88,88
• Active Area: 210.4 x 157.8 mm
• Processor: ARM A53 (Quad Core 2.0GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (upgradeable to Android 13) default; Linux Yocto 5.10.104 with Qt 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• WLAN / Bluetooth: optional
• Dimensions (W x H x D): 252.41 x 197.8 x 36.4 mm
• Cut out: 230 x 178 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Aluminum
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP rating: Front IP65
• USB Ports: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial Port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 10/100/1000 Mbps
• Video: 1 x Micro HDMI output (optional)
• SD Card Slot: 1 x Micro SD (max 32 GB)
• Accessories: Quick Start Guide (hardcopy); AC Adapter 12V/50W; Power Cord; 3-pin terminal block to DC jack
• Power Rating: 12V DC with terminal block (default); 9~36V (optional)
• Adapter: 12V 50W
• Control: 1 x Power Button (optional)
