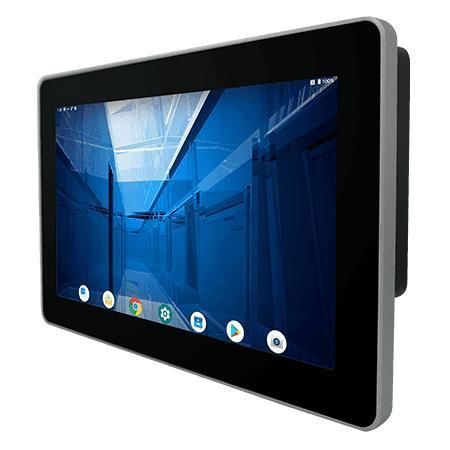

PCAP touchscreen panel PC W10IM3S-GCH2

multitouch screentouch screen10.1"

Overview
The W10IM3S-GCH2 is a 10.1-inch front panel PC for industrial HMI use, featuring a front IP65-rated true flat projected-capacitive (PCAP) multi-touch display, ARM A53 quad-core processing, fanless cooling and support for Android (default) or Linux operating systems.

Key Features

• ARM A53 Quad Core 2.0 GHz CPU
• Fanless design and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat edge-to-edge front surface for easy cleaning
• Projected capacitive (PCAP) multi-touch screen
• Rich I/O: 1 x Micro USB, 2 x USB 2.0, 1 x RS232/422/485, 1 x RJ45 LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)
• Supports Android (default) and optional Linux distributions

Product Highlights

• Flat front bezel to reduce dust accumulation and simplify maintenance
• PCAP multi-touch for responsive on-screen operation
• VESA and panel-mount options for wall, desk or in-vehicle installation
• Optional Micro HDMI, speaker, wide input (9–36V) and wireless (WLAN/BT)

Certifications

• CE
• FCC

Technical specifications

• Display Size: 10.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 800
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Active Area: 216.96 x 135.6 mm
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 11 (upgradeable to Android 13) default; Linux Yocto 5.15.47 with Qt 5.15 (optional); Linux Ubuntu Server 22.04 (optional)
• WLAN / Bluetooth: optional
• Dimensions: 262 x 172 x 40.2 mm
• Cut out: 249 x 158 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Plastic front bezel with metal back cover
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock / Vibration: MIL-STD-810H (516.8 Proc I / 514.8 Proc I)
• IP Rating: Front IP65
• USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker (optional)
• SD Card: 1 x Micro SD slot (max 32 GB)
• Accessories: Quick Start Guide (hardcopy); AC adapter 12V/50W; power cord; 3-pin terminal block to DC jack
• Power: 12V DC with terminal block (default); 9–36V optional; Adapter 12V 50W
• Button: 1 x Power Button (optional)
