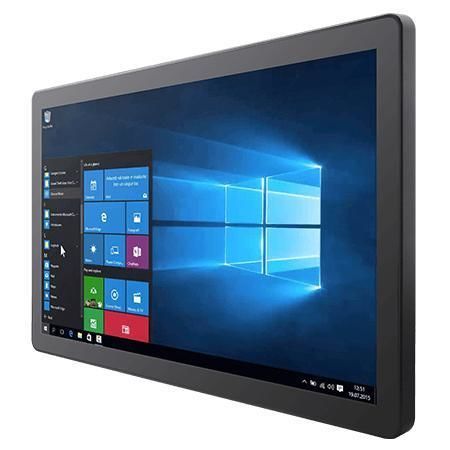

PCAP touchscreen panel PC W24IP3S-GCA2

multitouch screen24"Intel® Pentium® N4200

Overview
Winmate W24IP3S-GCA2 is a 24" front IP65 P-CAP panel PC designed for industrial, in-vehicle and harsh-environment HMI applications. It combines a true-flat edge-to-edge front, Intel® Pentium® N4200 performance and fanless passive cooling for low power consumption and high reliability.

Key Features

• 24" 1920 x 1080 FHD with projected capacitive multi-touch
• Intel® Pentium® N4200 (Apollo Lake)
• Fanless passive cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• True-flat edge-to-edge front for easy cleaning

Product Details - Highlights

• Flat aluminum P-CAP front panel prevents liquid ingress and simplifies maintenance.
• Front IP65 rating for dust and splash resistance in industrial environments.
• Fanless design with passive fins to reduce noise and increase MTBF.
• Universal mounting: VESA 100 x 100 mm and panel mount for wall, desk or embedded installations.

Display

• Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89°/89°/89°/89°
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 4 GB DDR3L (default); 8 GB optional
• Storage: 128 GB M.2 2242 SSD (default); options up to 512 GB / 1 TB
• Ethernet controller: 2 x Intel® Ethernet Controller (I210-AT referenced)
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• WLAN / Bluetooth: optional

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -20 °C to 60 °C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65

Certification

• CE, FCC

IO Ports

• USB: 2 x USB 3.0
• Serial: 1 x RS232 (default) / RS422 / RS485
• LAN: 1 x RJ45 10/100/1000 Mbps + 1 x RJ45 (secondary)

Mechanical

• Dimensions: 588 x 358 x 55 mm
• Mounting: VESA 100 x 100 mm, panel mount
• Enclosure: Metal housing with plastic bezel
• Cooling System: Fanless passive cooling

Accessory

• Quick Start Guide (hardcopy)
• AC Adapter 12V / 50W
• Power Cord
• 3-pin Terminal Block to DC Jack

Control

• Buttons: 1 x Power, 1 x Reset

Power

• Power Rating: 12V DC via terminal block

Technical Specifications

• Model: Winmate W24IP3S-GCA2
• Display: 24" FHD (1920x1080) P-CAP multi-touch, 250 nits, 3000:1
• CPU: Intel® Pentium® N4200
• Memory / Storage: 4 GB / 128 GB SSD (options available)
• Network & Security: Dual Intel controllers, TPM 2.0
• Environment & Robustness: Front IP65, MIL-STD-810G shock & vibration
