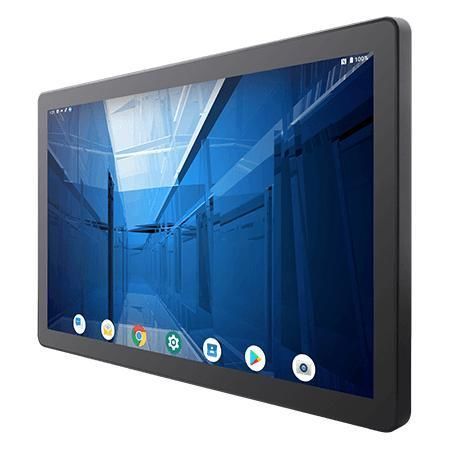

PCAP touchscreen panel PC W24MG3S-GCA2

multitouch screen24"ARM® Cortex®-A55 Quad-core

Overview
The Winmate GC Series W24MG3S-GCA2 is a 24-inch front IP65 PCAP Panel PC designed for industrial HMI and panel applications requiring hygienic, easy-to-clean surfaces, fanless operation and broad I/O connectivity.

Key Features

• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling with heat sinks and vapor chambers for low power and quiet operation
• Front IP65 protection against water and dust
• True flat edge-to-edge front surface for simplified cleaning
• Comprehensive I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Design & Operation
The true-flat bezel prevents accumulation of dust and liquids in crevices, reducing maintenance time. The fanless thermal design with heat sinks and vapor chambers supports continuous, quiet industrial operation.

Durability & Protection
Front IP65 rating protects against splashes and particulate ingress, enabling deployment in harsh or hygienic environments where protection and reliability are required.

Connectivity
Wide range of I/O supports integration with PLCs, sensors, peripherals and external displays for HMI, SCADA and edge visualization tasks.

Certifications
CE, FCC

Included Accessories

• Quick Start Guide (Hardcopy)
• AC Adapter 12V/50W
• Power Cord
• 3 Pin Terminal Block to DC Jack

Notes
Default OS: Android 13. Optional OS: Linux Yocto 5.15.47 with QT 5.15; Linux Ubuntu 22.04. WLAN and Bluetooth available depending on configuration.

Technical specifications

• Display — Size: 24.0 inches; Touch/Glass: Projected Capacitive Multi Touch; Resolution: 1920 x 1080; Brightness: 250 nits; Contrast: 3000:1; View Angles: 89/89/89/89; Active Area: 527.04 x 296.46 mm
• Memory: 4 GB LPDDR4; Storage: Onboard 32 GB
• Dimensions: 588 x 358 x 55 mm; Cut out: 388 x 280 mm; Mounting: Panel mount / VESA
• Enclosure: Metal housing with plastic bezel; Cooling: Fanless
• Environment: Operating 0°C to 50°C; Humidity 10%–90% RH non‑condensing; Storage -20°C to 60°C
• Shock/Vibration: MIL-STD-810H (516.8 / 514.8)
• Power: 12V DC terminal block (default); 9–36V optional; Adapter: 12V 84W
• IO: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG); 1 x RS232/422/485; 1 x LAN 10/100/1000 Mbps; 1 x Micro SD; Micro HDMI (optional); Audio (optional)
