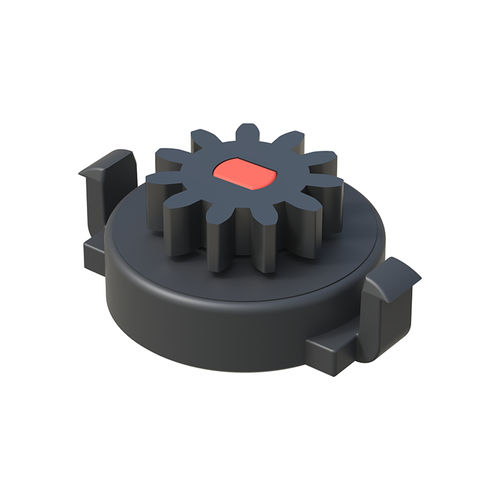

Rotary damper TBBfluidfor furniturefor automobiles
Add to favorites
Compare this product
Characteristics
- Function
- rotary
- Technology
- fluid
- Applications
- for furniture, for automobiles
- Thread length
Min.: 3 mm
(0.1 in)Max.: 5 mm
(0.2 in)- Diameter
15 mm
(0.6 in)- Height
Min.: 7.7 mm
(0.3 in)Max.: 10 mm
(0.4 in)
Description
Overview
Rotary dampers of the TBB series provide controlled rotational braking across a range of torque ratings. They are typically used to regulate the opening stroke of doors and panels and can be applied in timing devices or radial-motion mechanisms. Variants differ by tooth count, pitch diameter and panel thickness.
Documentation & Compliance
Available references (table)
Reference | No. Teeth (Z) | Pitch diameter Dp (mm) | h (mm) | D (mm) | A (mm) | H (mm) | Panel thickness c (mm)
50002000013 | 10 | 8,00 | 3,50 | 14,95 | 20,80 | 8,50 | 2,50
50002000079 | 10 | 8,00 | 3,50 | 14,95 | 24,00 | 8,20 | 2,10
50002000014 | 11 | 6,60 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000080 | 11 | 6,60 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000002 | 11 | 8,80 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000078 | 11 | 8,80 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000015 | 11 | 8,80 | 4,50 | 14,95 | 20,80 | 9,50 | 2,50
50002000081 | 11 | 8,80 | 4,50 | 14,95 | 24,00 | 9,20 | 2,10
50002000016 | 11 | 8,80 | 5,00 (3+2) | 14,95 | 20,80 | 10,00 | 2,50
50002000082 | 11 | 8,80 | 5,00 (3+2) | 14,95 | 24,00 | 9,70 | 2,10
50002000017 | 12 | 9,60 | 3,50 | 14,95 | 20,80 | 8,50 | 2,50
50002000083 | 12 | 9,60 | 3,50 | 14,95 | 24,00 | 8,20 | 2,10
50002000018 | 12 | 9,60 | 3,50 | 14,95 | 20,80 | 8,00 | 2,50
50002000084 | 12 | 9,60 | 3,50 | 14,95 | 24,00 | 7,70 | 2,10
50002000019 | 13 | 10,40 | 5,00 | 14,95 | 20,80 | 10,00 | 2,50
50002000085 | 13 | 10,40 | 5,00 | 14,95 | 24,00 | 9,70 | 2,10
50002000020 | 14 | 7,00 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000086 | 14 | 7,00 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000021 | 16 | 12,80 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000087 | 16 | 12,80 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000022 | 16 | 12,80 | 5,00 | 14,95 | 20,80 | 10,00 | 2,50
50002000088 | 16 | 12,80 | 5,00 | 14,95 | 24,00 | 9,70 | 2,10
Technical characteristics / specifications
Rotary dampers of the TBB series provide controlled rotational braking across a range of torque ratings. They are typically used to regulate the opening stroke of doors and panels and can be applied in timing devices or radial-motion mechanisms. Variants differ by tooth count, pitch diameter and panel thickness.
Documentation & Compliance
- Drawing PDF: available (2D)
- UL94: not specified
- IP rating: not specified
- RoHS: compliant
- Units: millimeters
- Video: MP4 demonstration available
Available references (table)
Reference | No. Teeth (Z) | Pitch diameter Dp (mm) | h (mm) | D (mm) | A (mm) | H (mm) | Panel thickness c (mm)
50002000013 | 10 | 8,00 | 3,50 | 14,95 | 20,80 | 8,50 | 2,50
50002000079 | 10 | 8,00 | 3,50 | 14,95 | 24,00 | 8,20 | 2,10
50002000014 | 11 | 6,60 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000080 | 11 | 6,60 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000002 | 11 | 8,80 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000078 | 11 | 8,80 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000015 | 11 | 8,80 | 4,50 | 14,95 | 20,80 | 9,50 | 2,50
50002000081 | 11 | 8,80 | 4,50 | 14,95 | 24,00 | 9,20 | 2,10
50002000016 | 11 | 8,80 | 5,00 (3+2) | 14,95 | 20,80 | 10,00 | 2,50
50002000082 | 11 | 8,80 | 5,00 (3+2) | 14,95 | 24,00 | 9,70 | 2,10
50002000017 | 12 | 9,60 | 3,50 | 14,95 | 20,80 | 8,50 | 2,50
50002000083 | 12 | 9,60 | 3,50 | 14,95 | 24,00 | 8,20 | 2,10
50002000018 | 12 | 9,60 | 3,50 | 14,95 | 20,80 | 8,00 | 2,50
50002000084 | 12 | 9,60 | 3,50 | 14,95 | 24,00 | 7,70 | 2,10
50002000019 | 13 | 10,40 | 5,00 | 14,95 | 20,80 | 10,00 | 2,50
50002000085 | 13 | 10,40 | 5,00 | 14,95 | 24,00 | 9,70 | 2,10
50002000020 | 14 | 7,00 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000086 | 14 | 7,00 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000021 | 16 | 12,80 | 3,00 | 14,95 | 20,80 | 8,00 | 2,50
50002000087 | 16 | 12,80 | 3,00 | 14,95 | 24,00 | 7,70 | 2,10
50002000022 | 16 | 12,80 | 5,00 | 14,95 | 20,80 | 10,00 | 2,50
50002000088 | 16 | 12,80 | 5,00 | 14,95 | 24,00 | 9,70 | 2,10
Technical characteristics / specifications
- Product family: Motion-control dampers
- Model / commercial denomination: TBB
- Type: Rotary damper, panel mount
- Applications: door/panel opening control, timing devices, radial-motion mechanisms
- Variant range: multiple tooth counts and diameters as listed above
- RoHS: compliant
- UL94: not specified
- IP rating: not specified
- Units: millimeters
- Documentation: 2D drawing (PDF) available
- Video: demonstration (MP4) available
- Brand: ISC Plastic Parts
