Blind rivet MRI

flat-headnylonbreak-mandrel

Product description

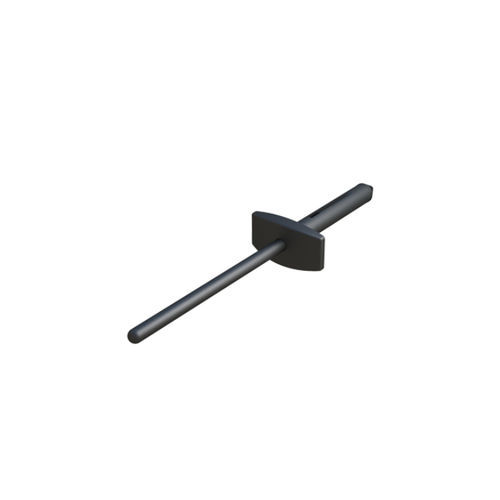

The blind rivet is a precision rivet used to fasten plastic to plastic, plastic to metal and plastic to fiberglass elements. These rivets are non-conductive and non-corrosive. The body is in impact modified nylon (PA66) and the pin is molded in acetal (POM). The three leg design permits to secure lock the panels in place and to prevent the pullout. The rivet inserts from either side of the assembly using standard rivet setting tools. As the pin is pulled through the body it draws the panels together. When set, the pin breaks off and even the head leaves an attractive finished look.

Certifications & compliance

• UL94: V2
• RoHS: Compliant
• IP: Not specified

Measures
Millimeters

Variants (table)
Reference | Hole size | Panel thickness | C | H | L | D / D1 | d | A | More Info
50001000120 | 4,00 | 6,00 to 10,00 | 2,55 | 26,30 | 65,20 | 15,65 / 8,30 | 2,30 | 3,80 |
50001000121 | 4,20 | 1,50 to 4,50 | 2,70 | 18,80 | 47,80 | 15,20 / 7,70 | 2,40 | 4,00 |

Multimedia

• 2D drawings: Available (PDF)
• Video: Available

Characteristics / technical specifications

• Body material: impact modified nylon (PA66)
• Pin material: acetal (POM)
• Electrical: non-conductive
• Corrosion: non-corrosive
• Design: three leg design to secure and prevent pullout
• Installation: inserts from either side using standard rivet setting tools; pin is pulled and breaks off when set
• Standards / compliance: UL94 V2; RoHS compliant
• Measures expressed in millimeters
• Available references: 50001000120, 50001000121
