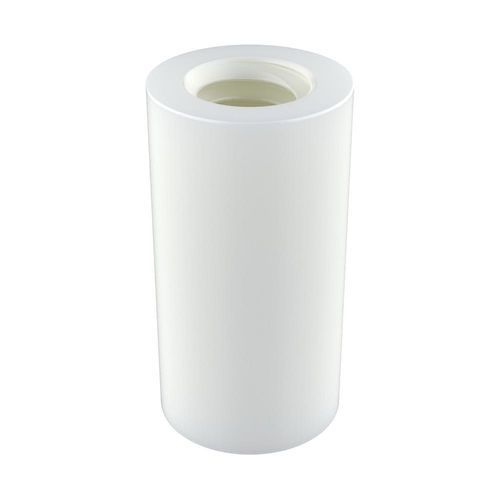

PCB standoff MECM

threadedfemalefor the automotive industry

Description
The MECM female threaded cylindrical spacer is designed for fixing, spacing and positioning boards, panels and components, maintaining a defined distance between assembly elements. Its cylindrical body provides a uniform external geometry to facilitate integration into various mounting configurations.

Material and properties
Manufactured from PA66 (polyamide 66), offering a combination of mechanical strength, toughness and low weight, together with electrical insulation properties suitable for electronic assemblies.

Applications

• Particularly suitable for PCB mounting to ensure clearance between the board and the chassis, panel or metal structure and to prevent electrical contact.
• Used in electronic equipment, electrical panels and cabinets.
• Also applicable where weight reduction, corrosion resistance or electrical insulation between components is required.

Standards and compliance

• Flammability rating: UL94 V2
• RoHS: Compliant (indicated)
• IP: Not indicated / not rated

Available references (table)
Reference | Metric thread | L | A
00100202025 | M3 | 6,35 | 6,35
00100202026 | M3 | 7,94 | 6,35
00100202027 | M3 | 9,53 | 6,35
00100202028 | M3 | 12,70 | 6,35
00100202029 | M3 | 15,88 | 6,35
00100202030 | M3 | 19,05 | 6,35
00100202031 | M3 | 22,22 | 6,35
00100202032 | M3 | 25,40 | 6,35
00100202033 | M3,5 | 6,35 | 6,35
00100202034 | M3,5 | 7,94 | 6,35
00100202035 | M3,5 | 9,53 | 6,35
00100202036 | M3,5 | 12,70 | 6,35
00100202037 | M3,5 | 14,29 | 6,35
00100202038 | M3,5 | 15,88 | 6,35
00100202039 | M3,5 | 19,05 | 6,35
00100202040 | M3,5 | 22,22 | 6,35
00100202041 | M3,5 | 23,81 | 6,35
00100202042 | M3,5 | 25,40 | 6,35
00100202043 | M3,5 | 38,10 | 6,35
00100202044 | M4 | 6,35 | 6,35
00100202051 | M4 | 6,35 | 7,95
00100202045 | M4 | 9,53 | 6,35
00100202052 | M4 | 9,53 | 7,95
00100202046 | M4 | 12,70 | 6,35
00100202053 | M4 | 12,70 | 7,95
00100202047 | M4 | 15,88 | 6,35
00100202054 | M4 | 15,88 | 7,95
00100202048 | M4 | 19,05 | 6,35
00100202055 | M4 | 19,05 | 7,95
00100202049 | M4 | 22,22 | 6,35
00100202056 | M4 | 22,22 | 7,95
00100202050 | M4 | 25,40 | 6,35
00100202057 | M4 | 25,40 | 7,95
00100202058 | M5 | 6,35 | 9,53
00100202065 | M5 | 6,35 | 12,70
00100202059 | M5 | 9,53 | 9,53
00100202066 | M5 | 9,53 | 12,70
00100202060 | M5 | 12,70 | 9,53
00100202067 | M5 | 12,70 | 12,70
00100202061 | M5 | 15,88 | 9,53
00100202068 | M5 | 15,88 | 12,70
00100202062 | M5 | 19,05 | 9,53
00100202069 | M5 | 19,05 | 12,70
00100202063 | M5 | 22,22 | 9,53
00100202070 | M5 | 22,22 | 12,70
00100202064 | M5 | 25,40 | 9,53
00100202071 | M5 | 25,40 | 12,70

Additional resources
2D drawing and product video available for download on the product page.

Technical specifications

• Model: MECM
• Material: PA66 (polyamide 66)
• Flammability: UL94 V2
• RoHS: indicated as compliant
• IP rating: not indicated
• Measurement units: millimeters
• Typical applications: PCB mounting, electronic equipment, electrical panels, cabinets
• External geometry: cylindrical, uniform
