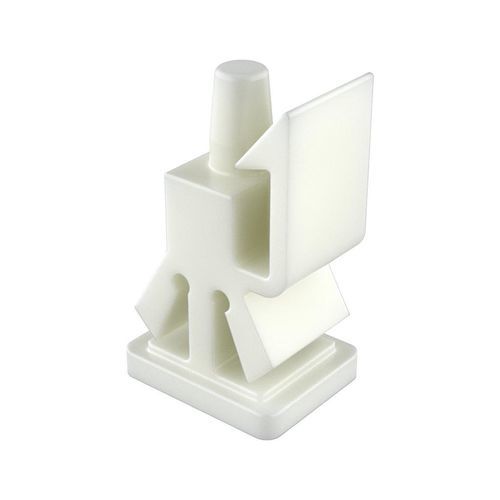

Heavy duty mounting bracket MATC

automotive

Product description
Our heavy-duty support snaps into P.C. boards from the bottom. The locking arm clips to the side of the PCB to provide simple removal and replacement of printed circuit boards. The support does not rotate in the chassis or positioning holes. Board clearance may vary depending on chassis thickness.

Standards and compliance

• UL94: V2
• RoHS: Compliant
• IP: Not specified

Measures
Measures expressed in: Millimeters

Drawings and media
Drawing PDF: Available
Video: Available

Table - References
Reference | L | Hole size Anchor 1 | Hole size Anchor 2 | Panel thickness Anchor 1 | Panel thickness Anchor 2 | H1 / H2 | B / D / A | C / F
00100900408 | 4.80 | 7.92 x 9.53 | 4.00 | 1.30 | 1.60 | 5.84 / 1.78 | 9.53 / 11.94 / 10.80 | 7.67 / 5.08

Technical characteristics / specifications

• Reference: 00100900408
• Length (L): 4.80 mm
• Hole size Anchor 1: 7.92 x 9.53 mm
• Hole size Anchor 2: 4.00 mm
• Panel thickness Anchor 1: 1.30 mm
• Panel thickness Anchor 2: 1.60 mm
• H1 / H2: 5.84 / 1.78 mm
• B / D / A: 9.53 / 11.94 / 10.80 mm
• C / F: 7.67 / 5.08 mm
• UL94 classification: V2
• RoHS: Compliant
• Measures unit: Millimeters
