Rotary door damper TBH

automotive

Description
Rotary dampers in the TBH series are available in a range of torque ratings and are typically used to control the opening stroke of doors and panels. They are also applied in timing devices and other mechanisms requiring controlled radial motion. Integrating a damper provides controlled movement and can improve the perceived finish of assemblies.

Compliance & Standards
UL94: No
IP: No
RoHS: Yes

Measures
Measurements expressed in: Millimeters (mm)

Drawings
Drawing PDF: available (2D drawings)

Media

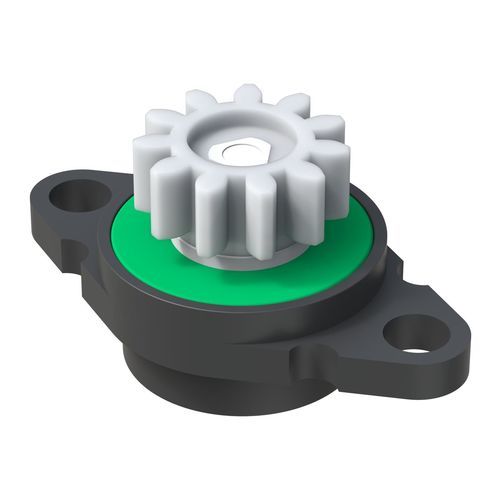

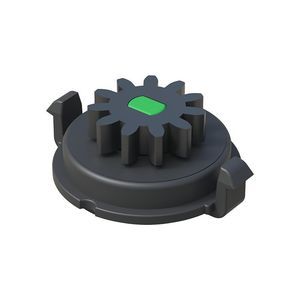

Images: product render and technical drawing available
Video: product video available

Table - Product references
Reference | No. Teeth (Z) | Pitch diameter Dp | h | D | A | H | c | More Info
50002000200 | 11 | 13.75 | 6.00 | 22.00 | 40.00 | 19.00 | 5.00 | info available

Technical specifications

• Model: TBH
• Reference: 50002000200
• No. Teeth (Z): 11
• Pitch diameter (Dp): 13.75 mm
• h: 6.00 mm
• D: 22.00 mm
• A: 40.00 mm
• H: 19.00 mm
• c: 5.00 mm
• Measures unit: Millimeters
• RoHS: Compliant
• UL94: Not specified / not applicable
• IP: Not specified
• Media: main render image, technical drawing image, product video available
